New Logic Test - 7456 Vector Table

New Logic Test-7456 Vector Table

Enclosed is the new layout to be added to the logic tests.

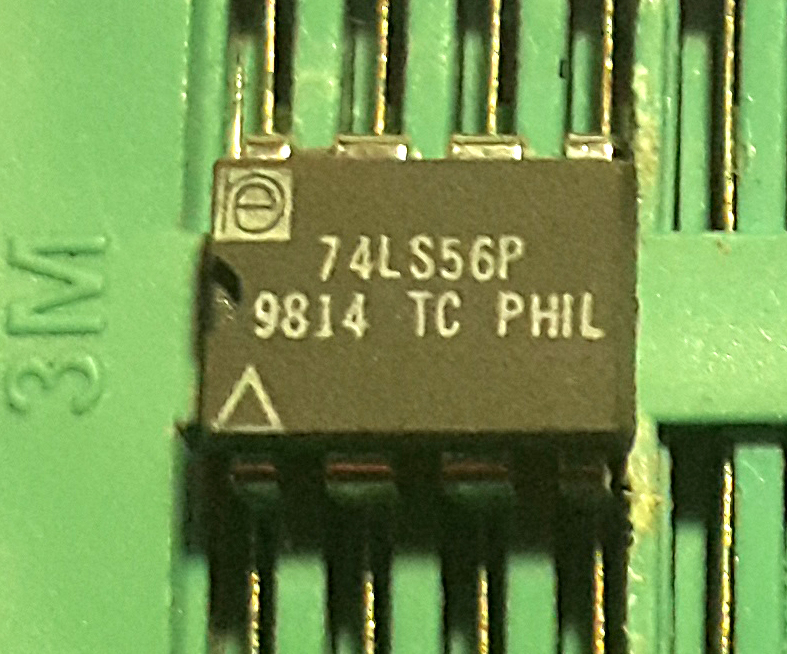

The test was performed on the 74LS56P (Frequency divider: 5 to 1, 5 to 1, and 10 to 1) chip from Rochester Electronics.

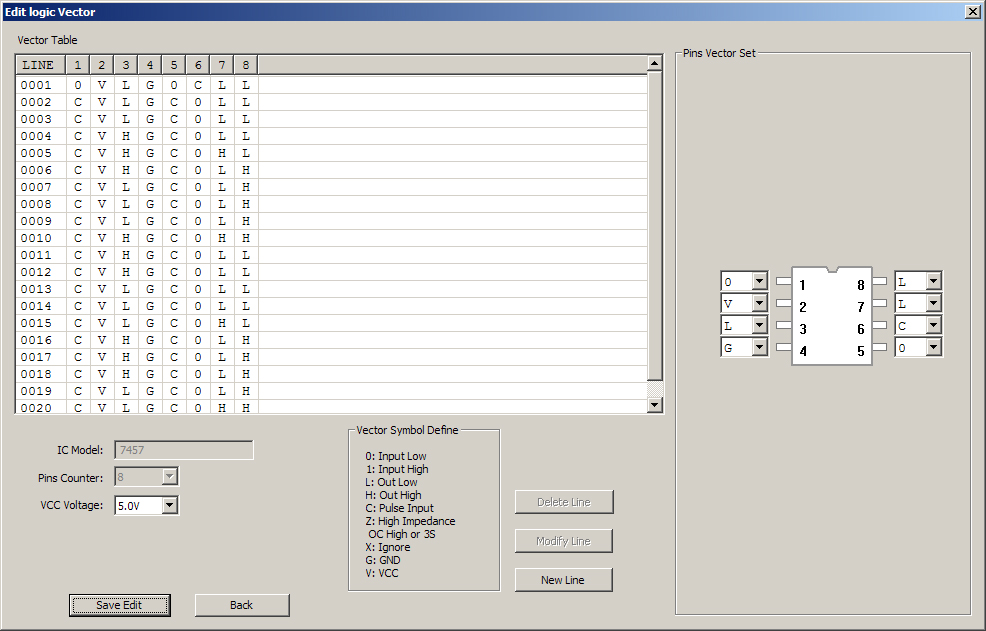

7456 - Logic Vector.jpg

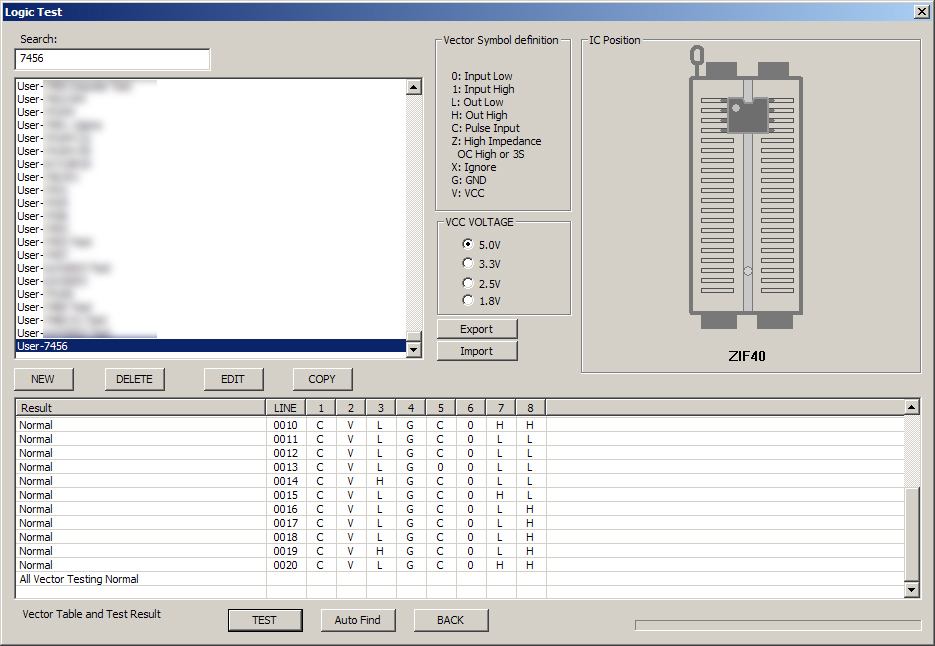

7456 - Logic Test.jpg

SN7456, SN7457.pdf (300.53 KB)

7456.lgc (2.53 KB)
