New Logic Test - 74100 Vector Table

New Logic Test-74100 Vector Table

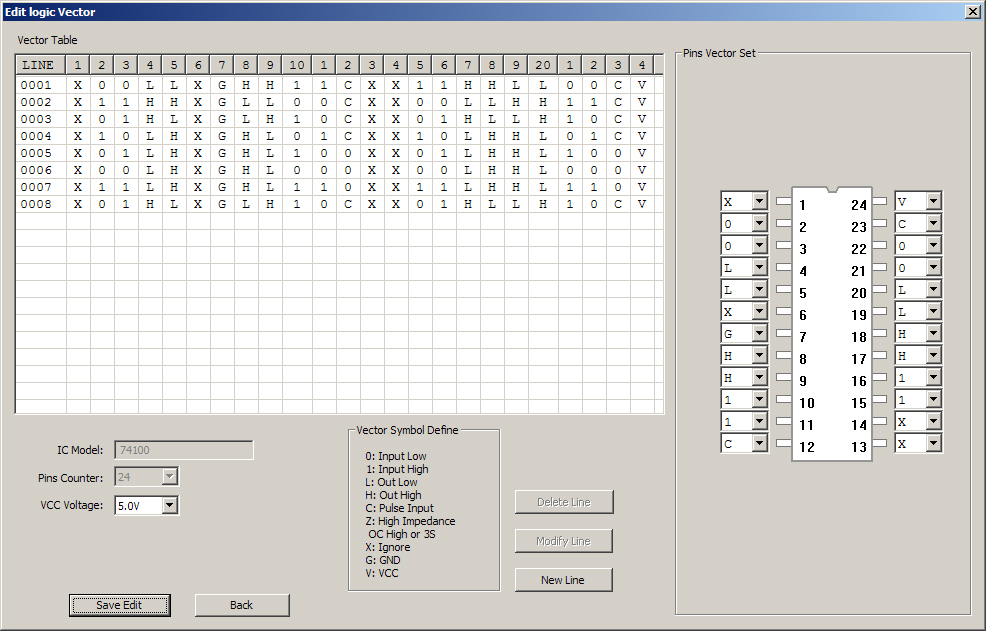

Enclosed is the new layout to be added to the logic tests.

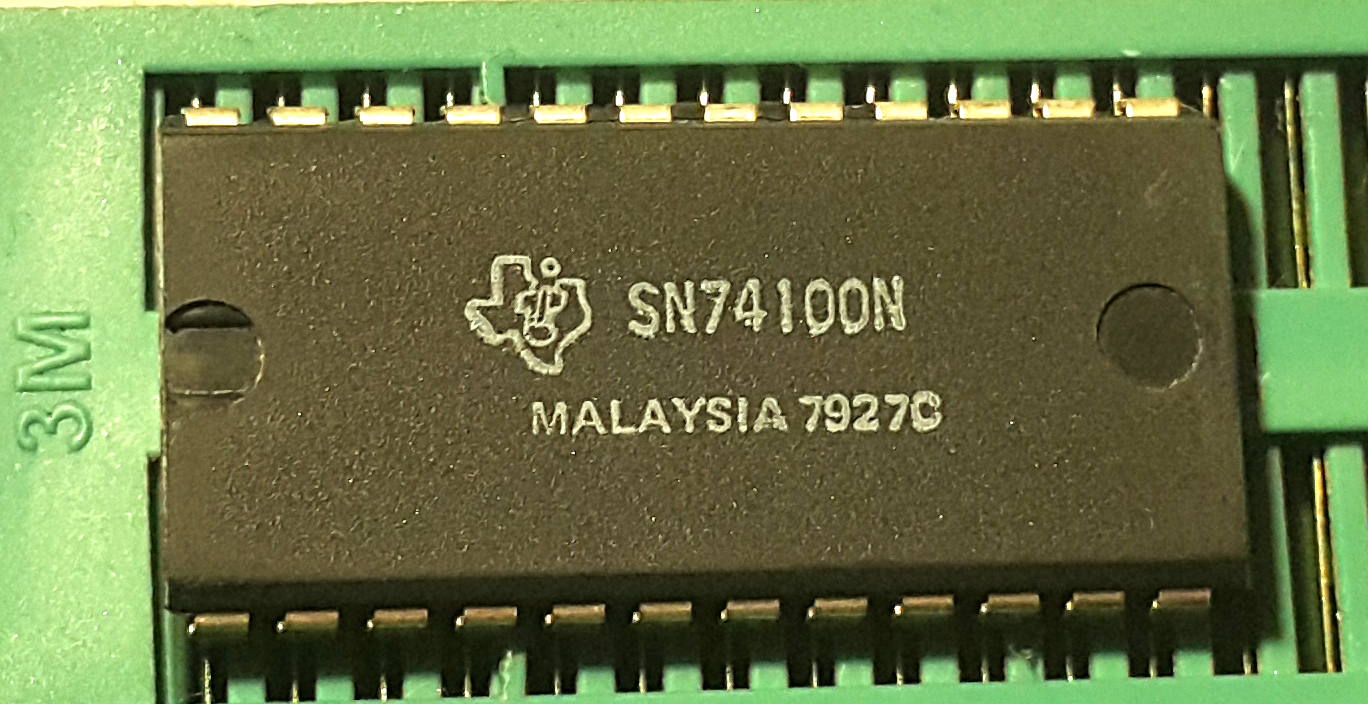

The test was performed on the SN74100N (8-bit bistable latches) chip from Texas Instruments.
74100 - Logic Vector.jpg
74100 - Logic Test.jpg

SN74100.pdf (131.75 KB)

74100.lgc (2.25 KB)
