New Logic Test - 7431 Vector Table

New Logic Test-7431 Vector Table

Enclosed is the new layout to be added to the logic tests.

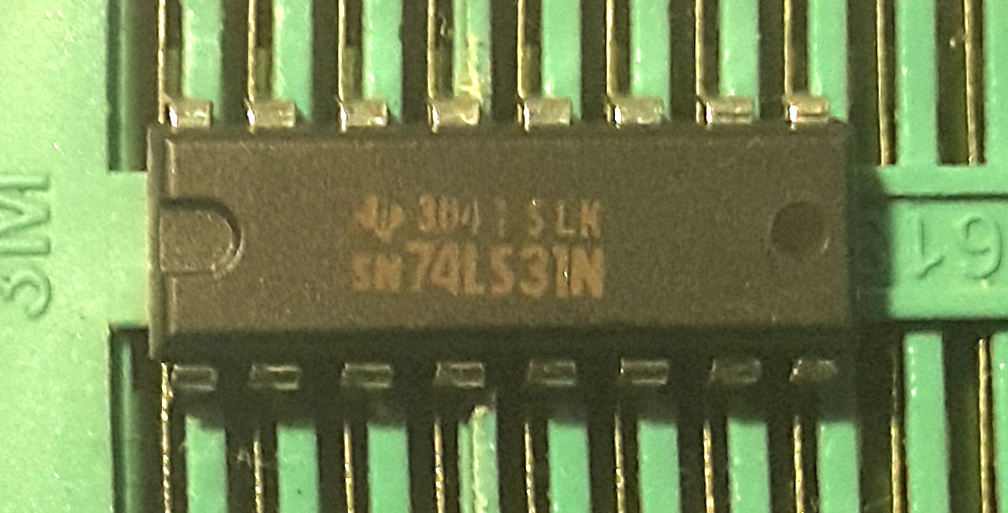

The test was performed on the SN74LS31N (Signal Relay) chip from Texas Instruments.

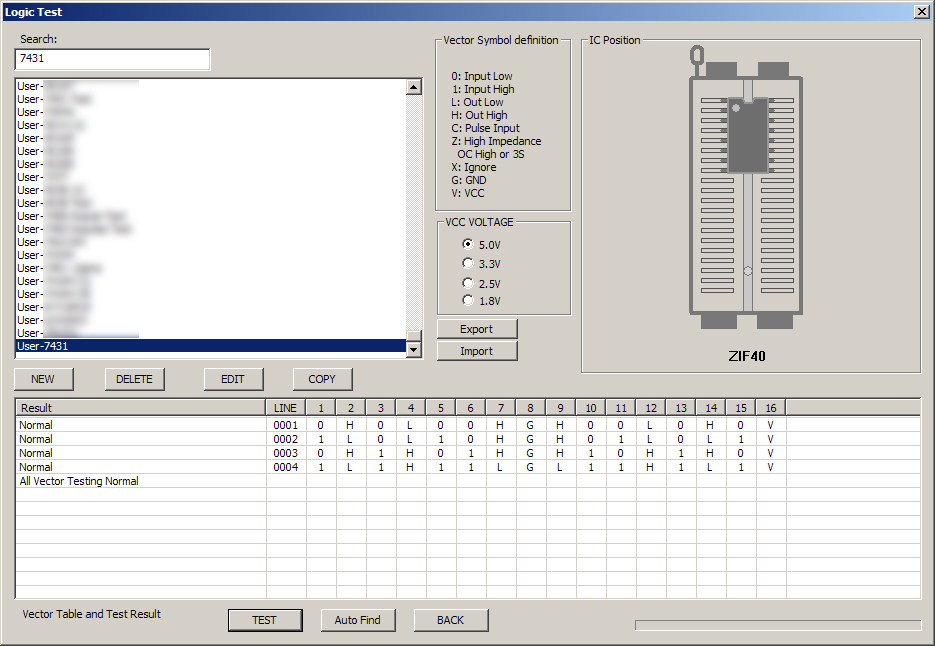

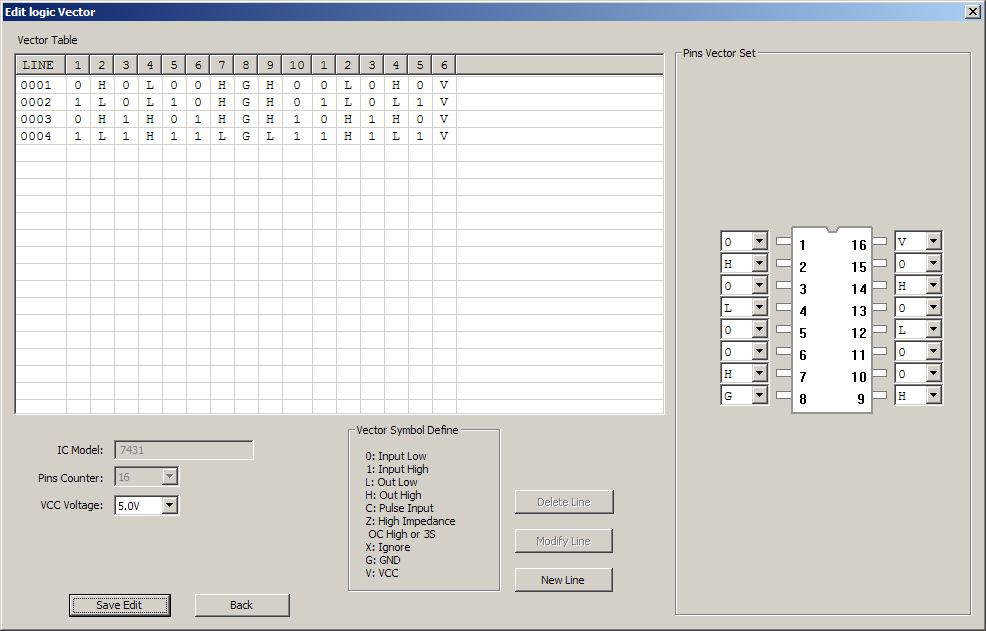

7431 - Logic Vector.jpg (249.31 KB)

7431 - Logic Vector.jpg

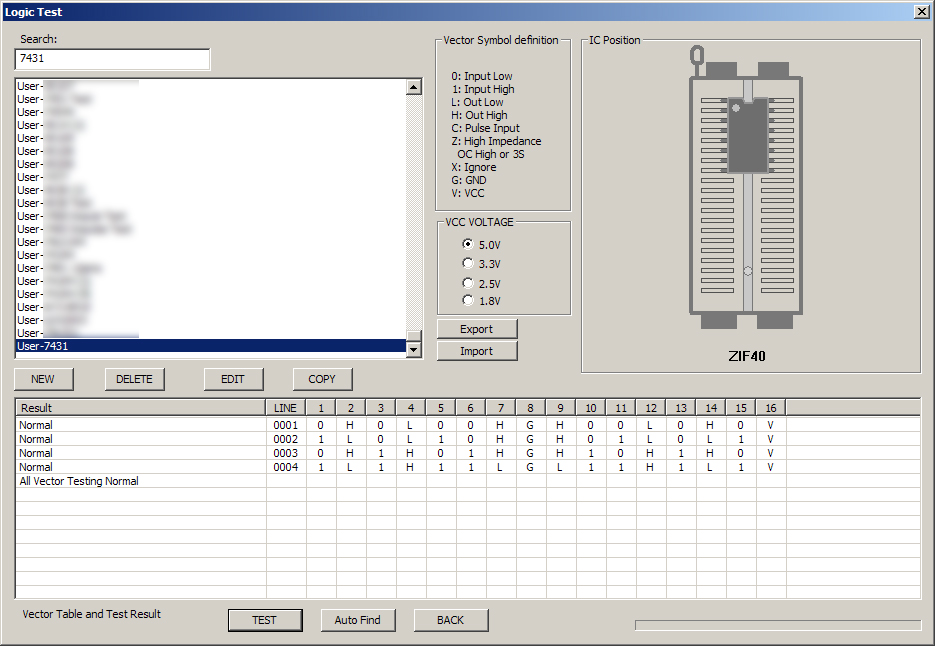

7431 - Logic Test.jpg (274.08 KB)

7431 - Logic Test.jpg



SN74LS31.pdf (283.71 KB)

7431.lgc (2.15 KB)
