New Logic Test - 74184 Vector Table

Logic, Test, 74184, Vector, Table
Enclosed is the new layout to be added to the logic tests.
The test was performed on the SN74184 (BCD TO BINARY AND BINARY TO BCD CONVERTERS) chip from Texas Instruments.

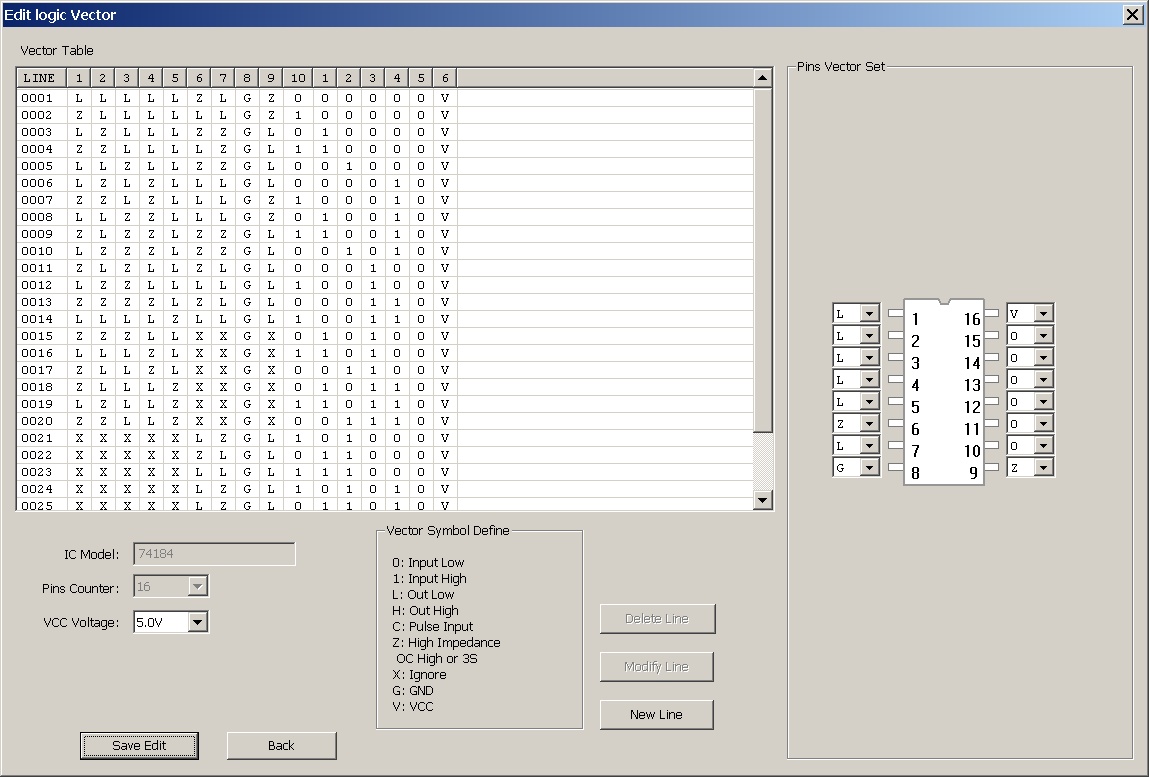

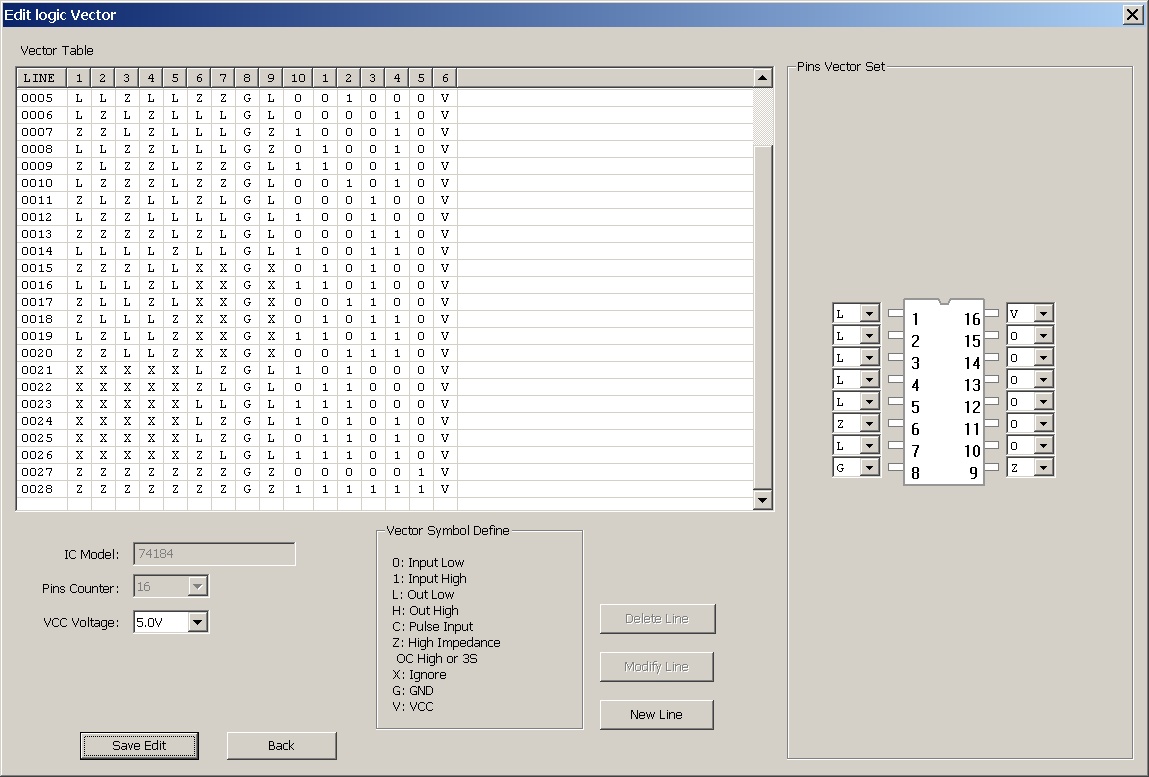

74184 - Logic Vector (1).jpg
2024-4-14 23:28


74184 - Logic Vector (2).jpg
2024-4-14 23:28

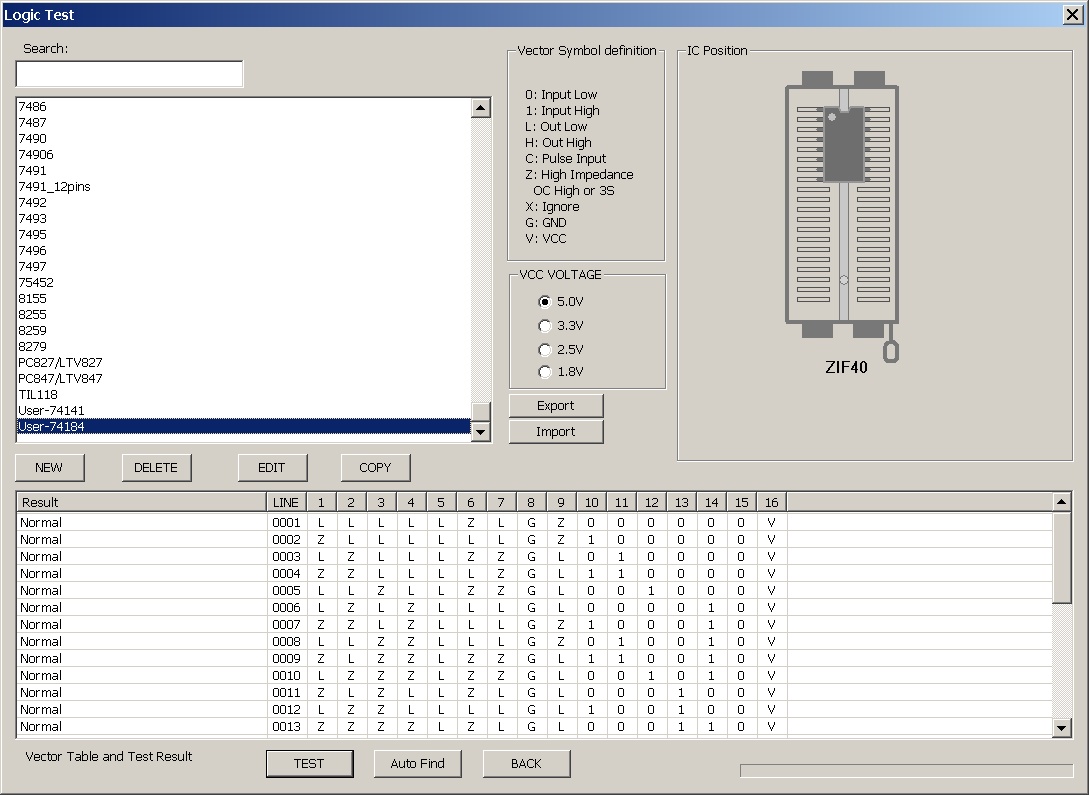

74184 - Logic Test (1).jpg
2024-4-14 23:28


74184 - Logic Test (2).jpg
2024-4-14 23:29


SN74184.pdf (385.51 KB)

74184.lgc (2.69 KB)
