SolMayers发表于 2024-4-14 23:30 | 只看该作者

New Logic Test - 74184 Vector Table

Logic, Test, 74184, Vector, Table
Enclosed is the new layout to be added to the logic tests (update in 2025 year).
The test was performed on the SN74184N (BCD TO BINARY AND BINARY TO BCD CONVERTERS).

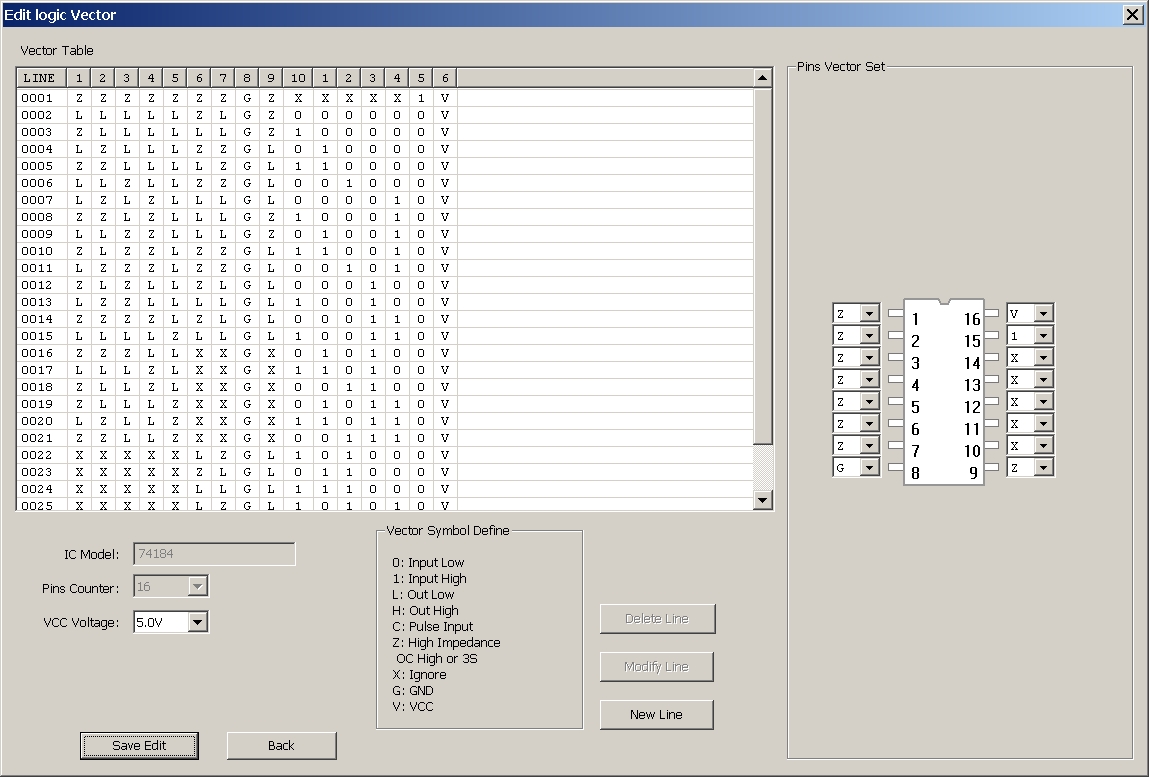

74184 - Logic Vector (1).jpg
2025-8-10 18:51

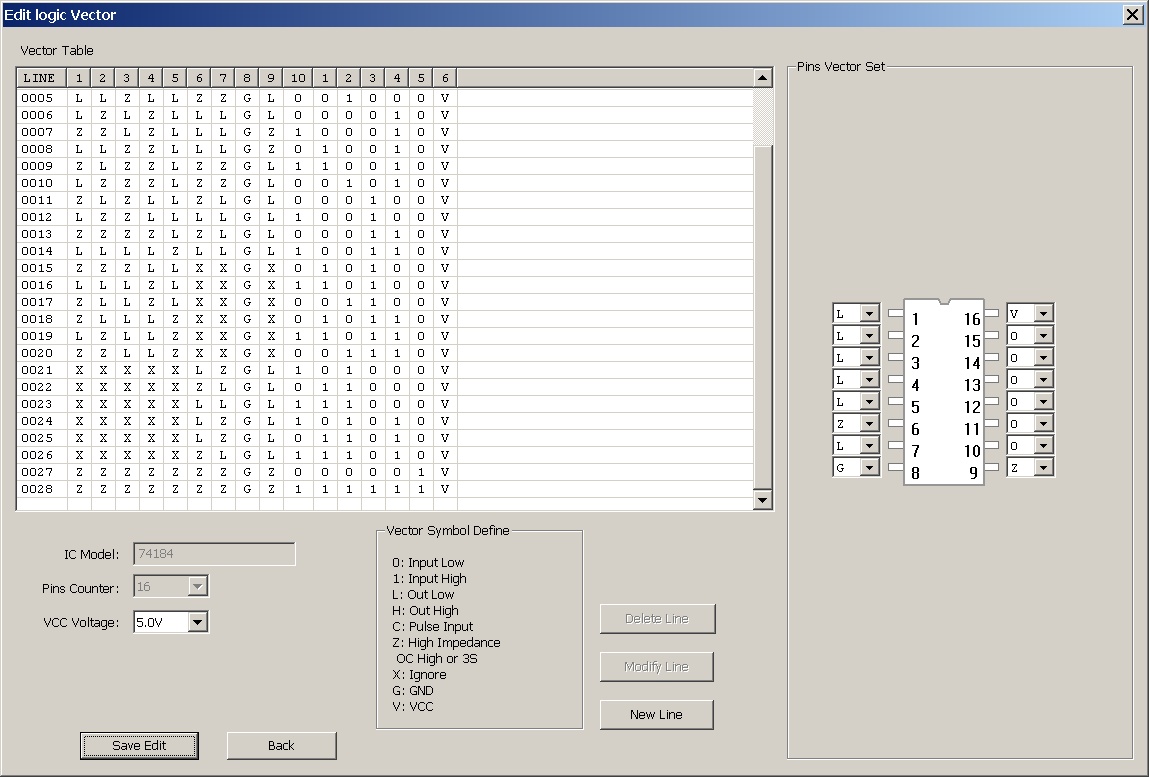

74184 - Logic Vector (2).jpg
2025-8-10 18:51

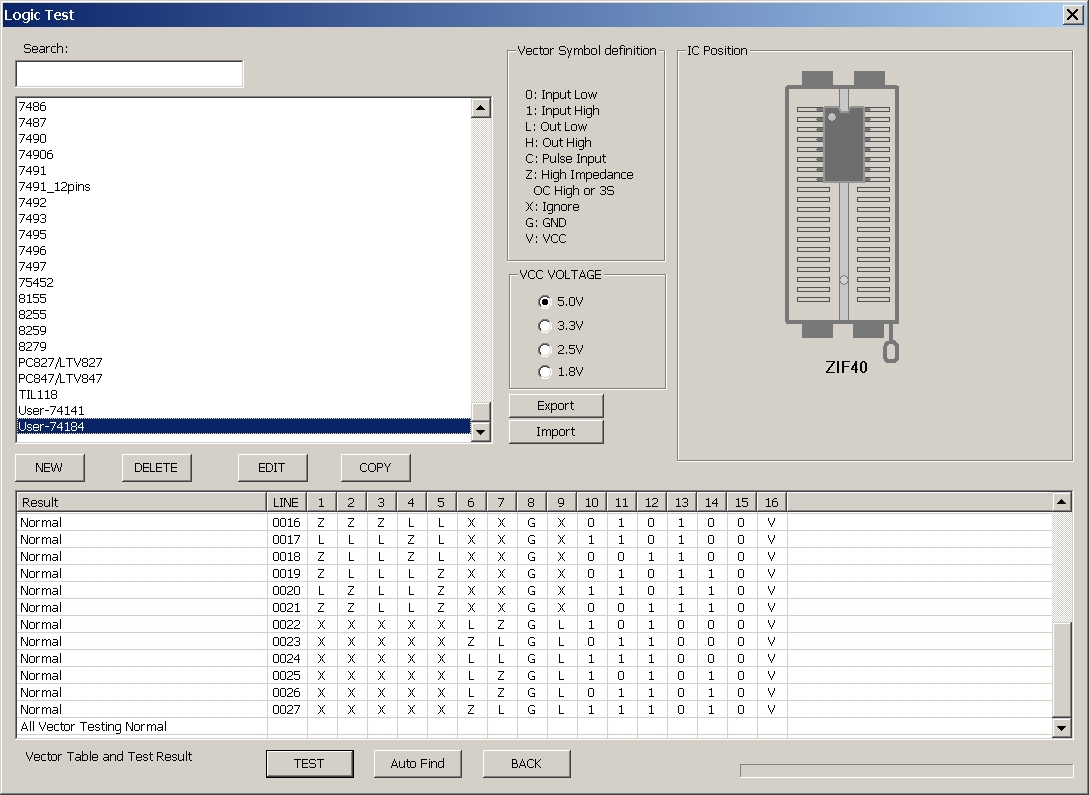

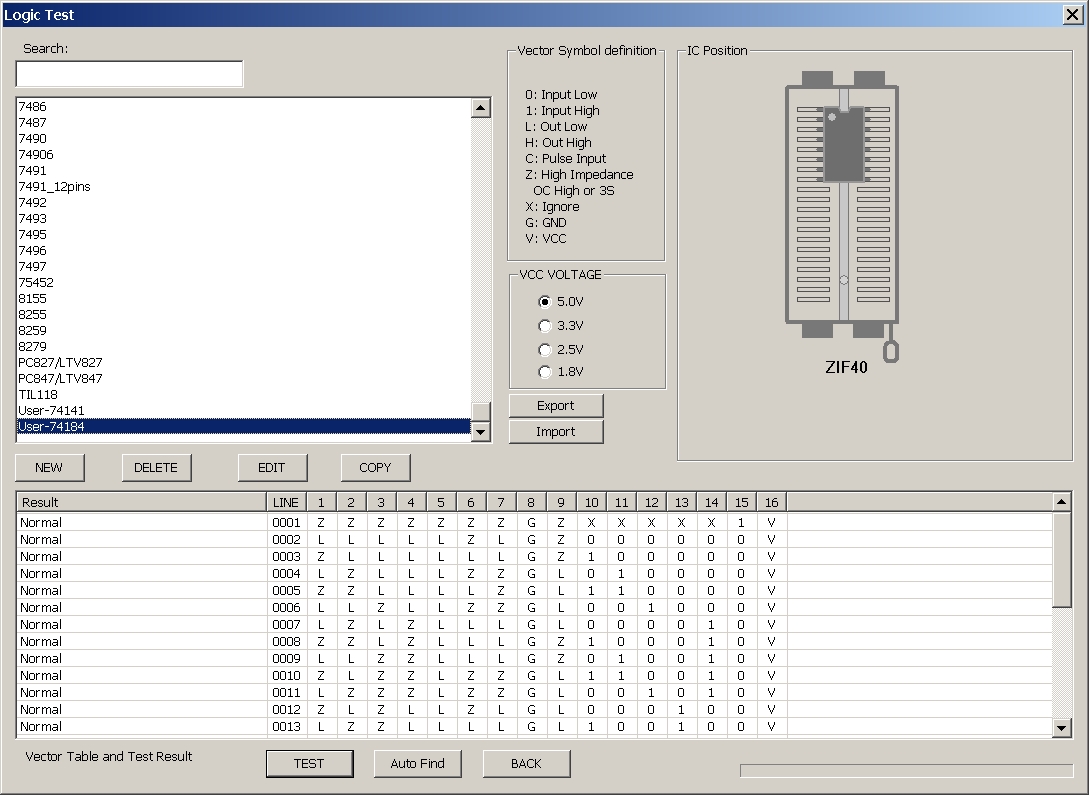

74184 - Logic Test (1).jpg
2025-8-10 18:51

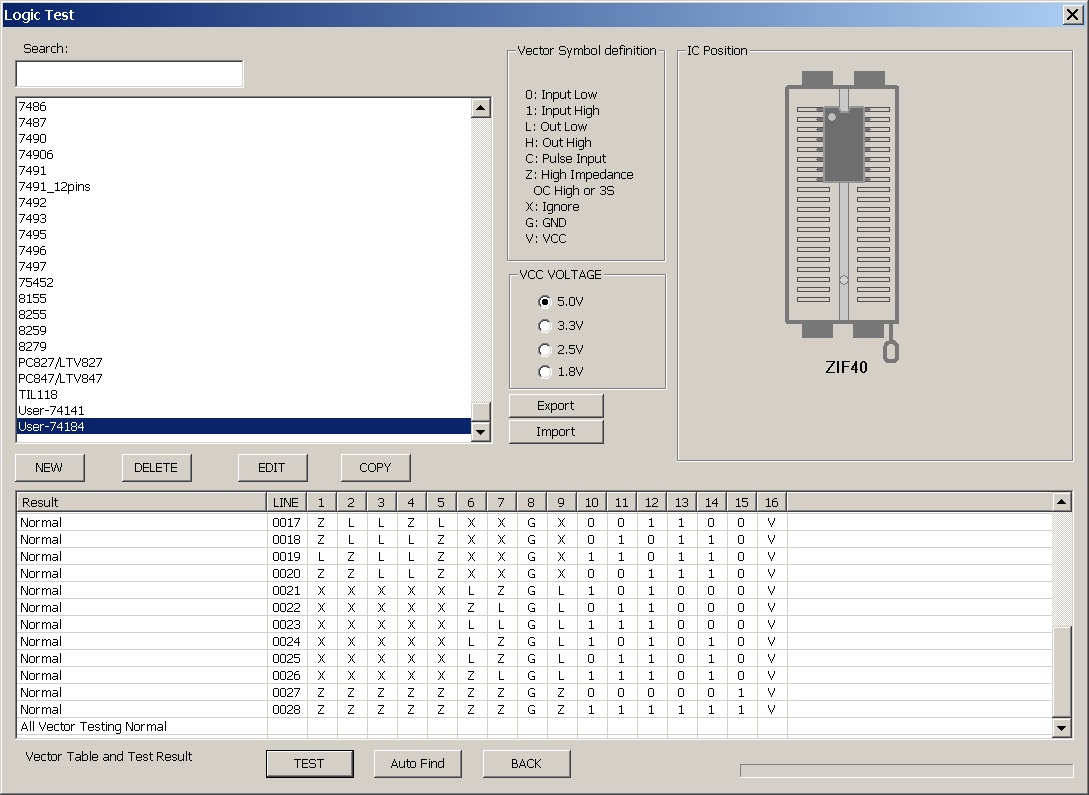

74184 - Logic Test (2).jpg
2025-8-10 18:51


SN74184.pdf (385.51 KB)

74184.lgc (2.71 KB)
