Program problem PC28F256P30BF (BGA64) PC28F256P30BF, BGA64

Test

Unfortunately, I'm unable to program PC28F256P30BF (BGA64) with adapter XG-BGA64P2-1.0mm

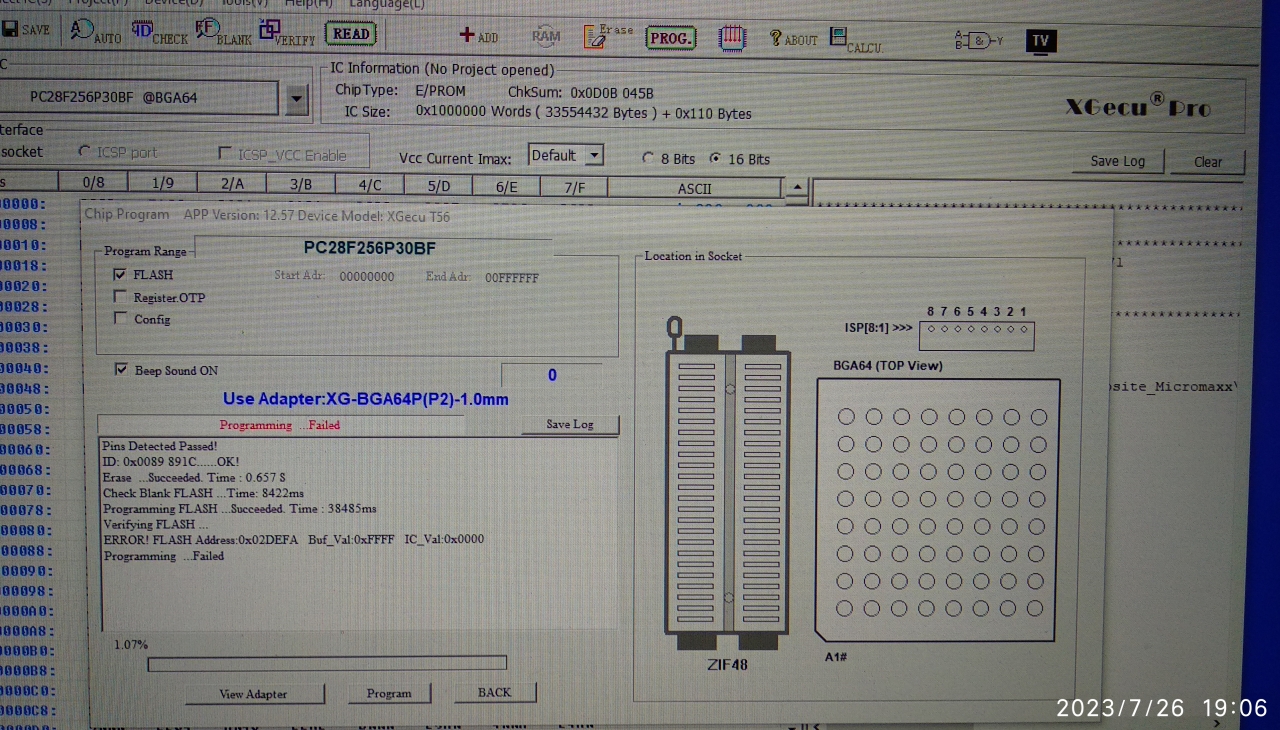

Each time I have error buf_val 0xFF but ic_val 0x00 with different addresses.

2023-7-21 04:54

admin

回复 1# Test

I did not find any errors during my testing.

Albano.Matos

回复  Test

I did not find any errors during my testing.
admin 发表于 2023-7-21 17:01

    As a User,
                   Hopefully is only a bad contact or resistance, on adapter side or chip side. Try cleaning both , or chip first, then the socket , then the rest.
Be carefully all the time

Hope it helps

Test

I bought a programmer from another manufacturer with an BGA64 adapter, PC28F256P30BF was erased and programmed normally.

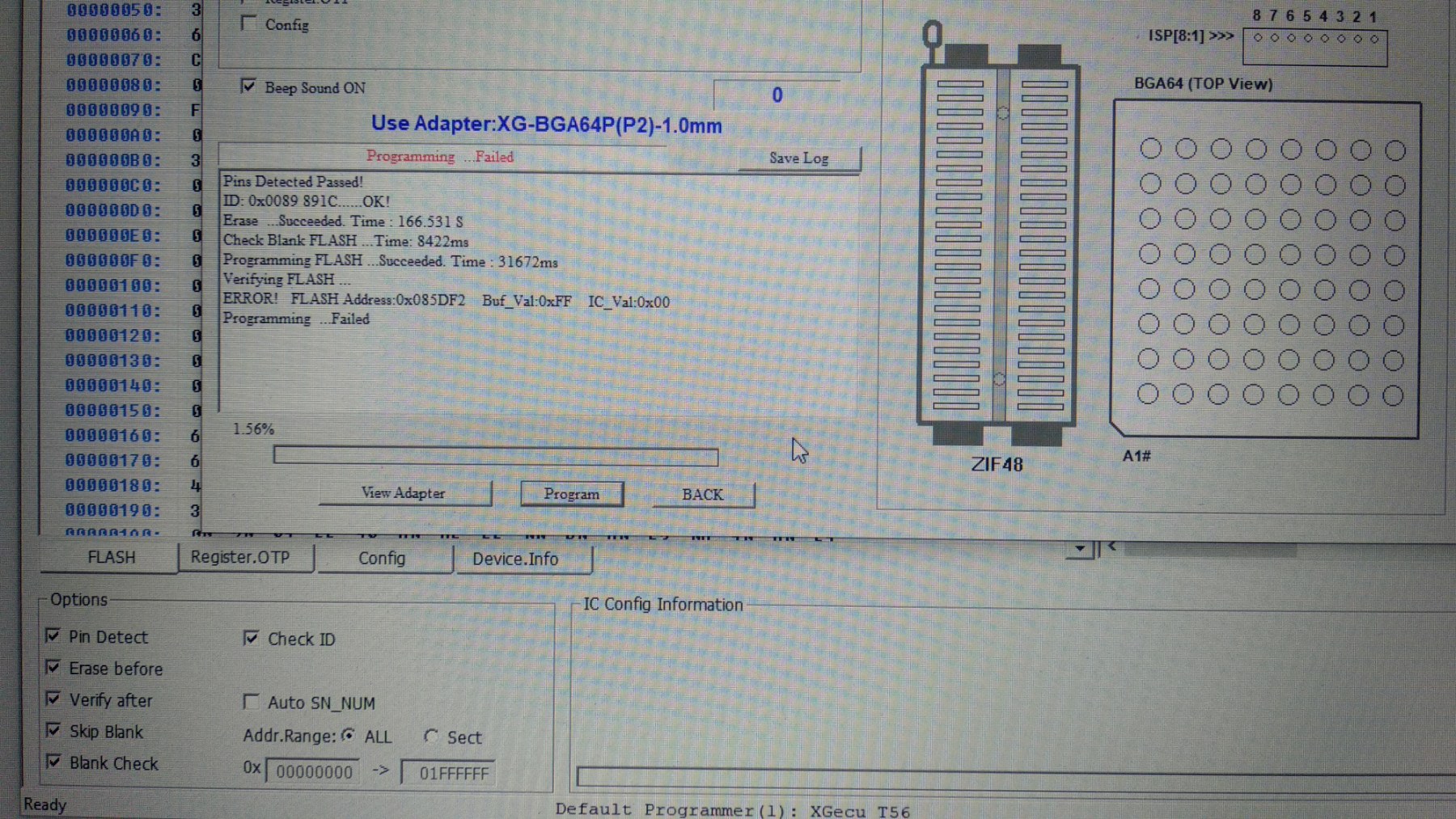

I repeat the same procedure on the T56 and I have error.

2023-7-27 02:35

Test

Chip erased with T56 and blank verified on other programmer successfully.
Chip programmed and verified on other programmer.

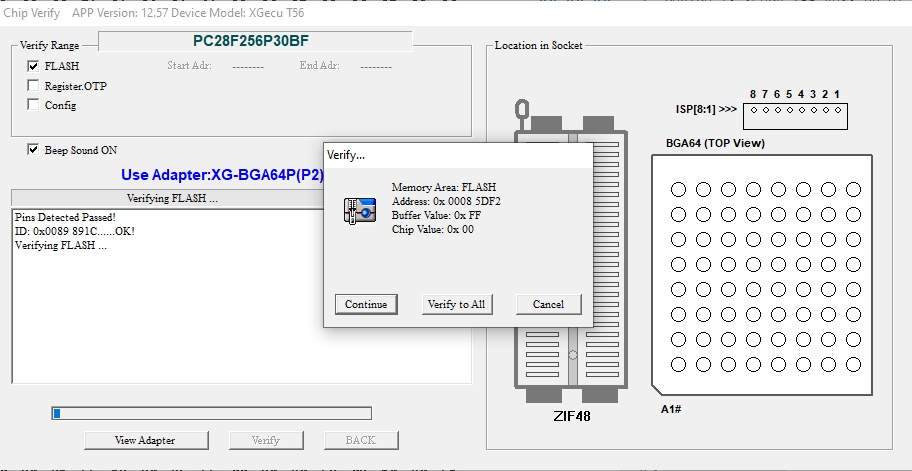

Then I read chip on T56, after I pressing verify I got error on address A, I close verify window, open it again, press verify and got error on address B, ....... got error on address C.

2023-7-27 03:46

2023-7-27 03:46

C

2023-7-27 03:47

Test

Your error is similar to mine. Pay attention to the firmware erasing time

Admins did not answer anything for 2 months with a similar problem.

http://forums.xgecu.com/viewthread.php?tid=1059&extra=page%3D1

admin

回复 5# Test

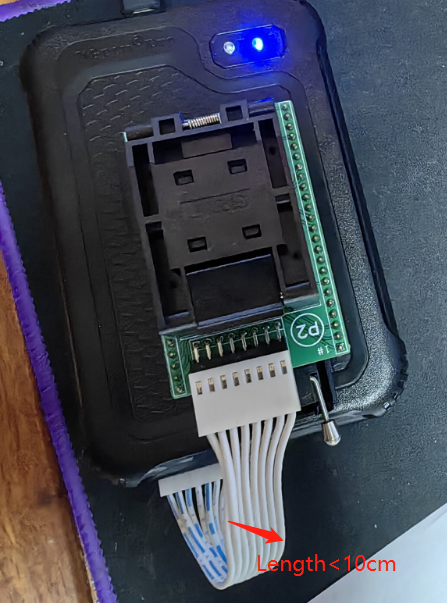

Please cut the ISP cable length to below 10CM.



2023-8-13 17:16

Test

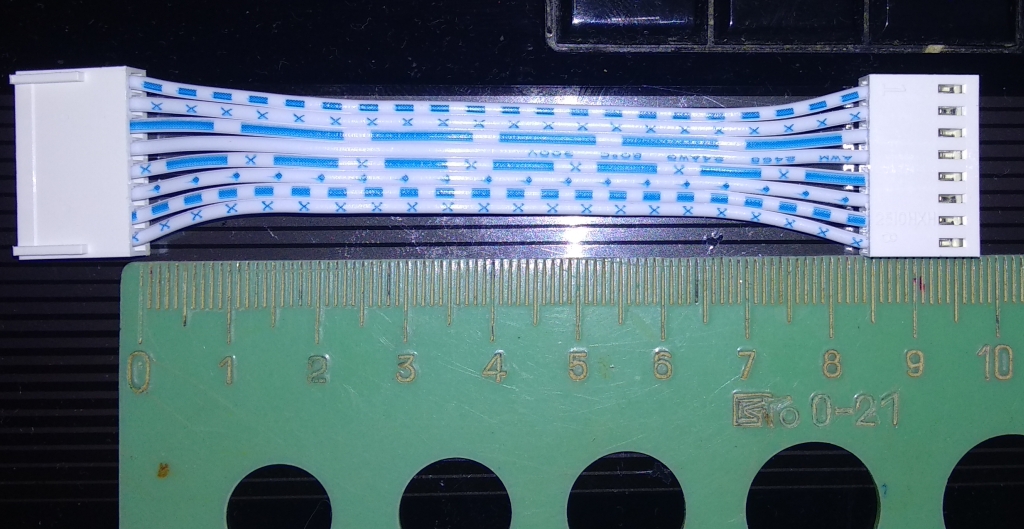

Unfortunately, the length of the cable is 8 cm (cable comes with adapter)

Length is 8 cm

2023-8-14 18:56

admin

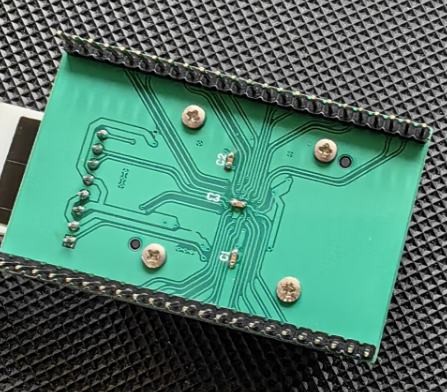

The back of adapter C1,c2  C3 all is 0.1uf.Have them been soldered  on?

2023-8-15 14:07

Test

I unsoldered all capacitors and checked. Capacitance is 0.1uF of each.
What else can I check?
