NAND wiring diagram for T48

Hello,
How can I wire a NAND IC to T48 programmer?
Please send a basic diagram that show which NAND pin connects to which T48 pin.

Thank you.

回复 1# vgrig

The fastest speed for programming NAND on T48 is 6-10MByte per second. There are process requirements for making circuit boards, and customers are not allowed to make the adapter by themselves. There is also an encryption chip on the back.
2023-5-17 19:00

TOP

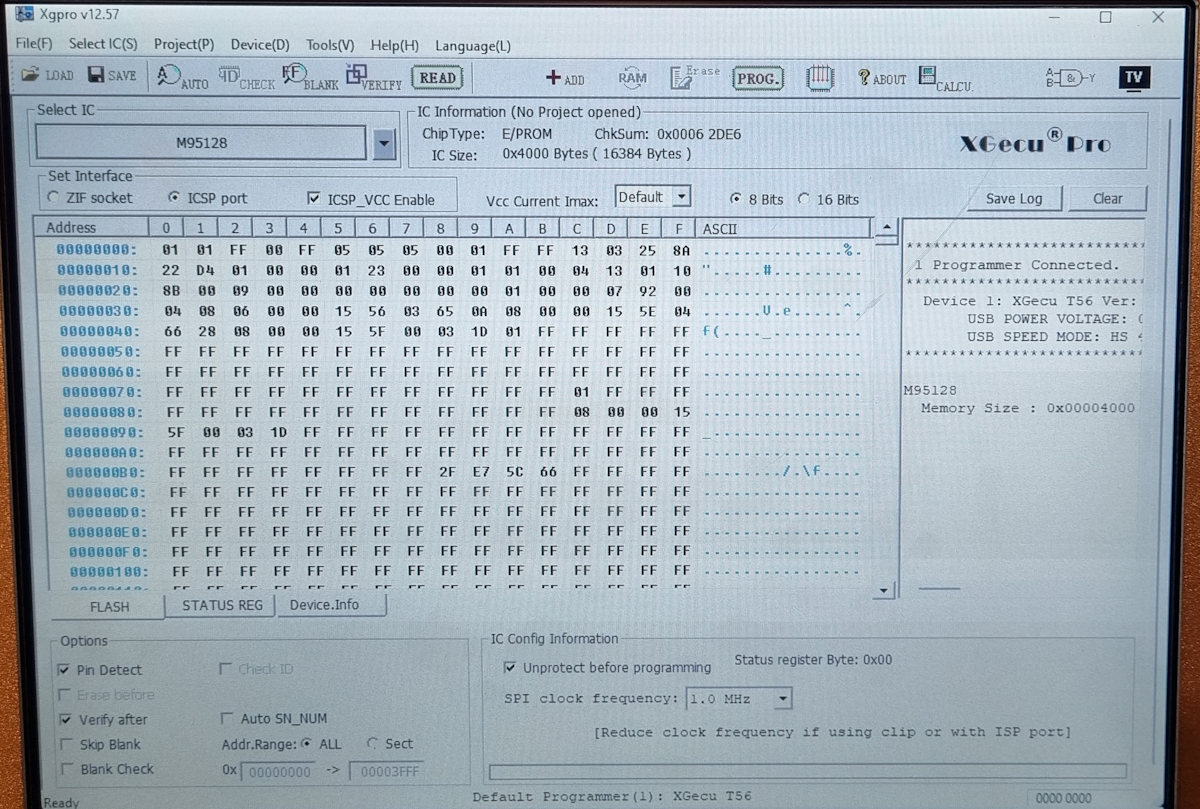

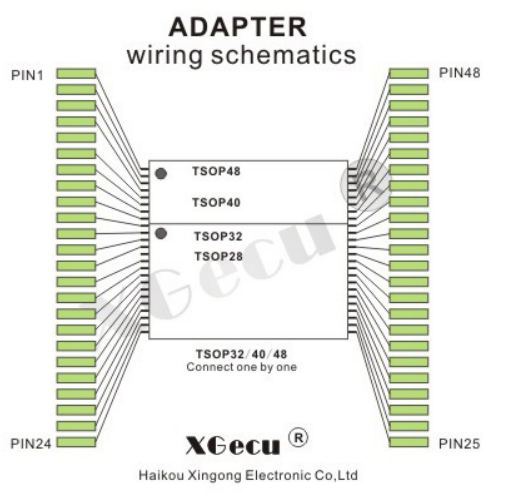

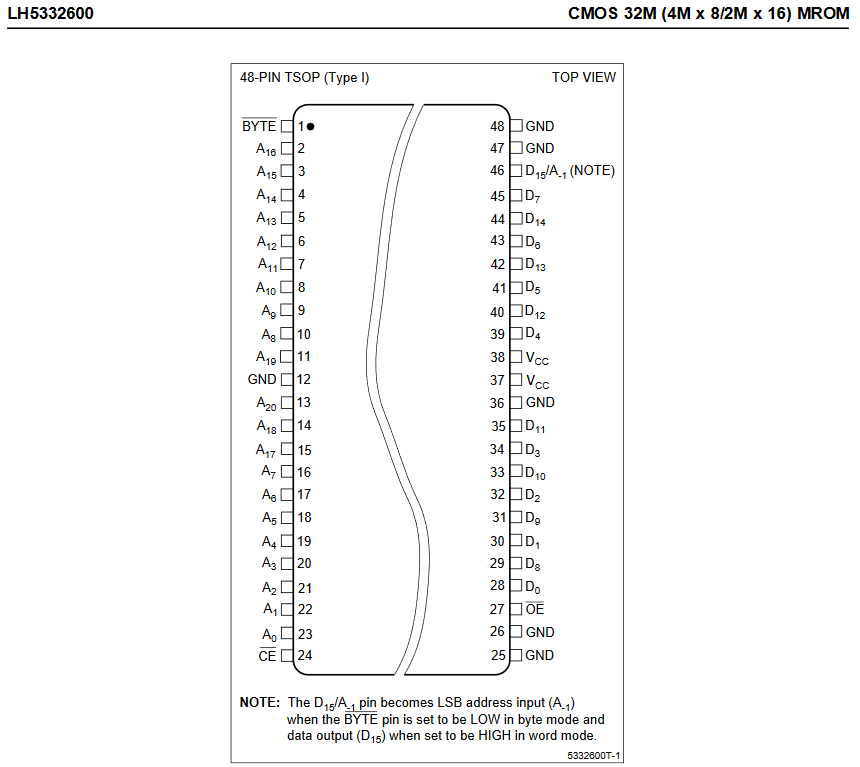

I'm referring to TSOP48  NANDs, low speed, used in routers, There is a diagram for T56 (see attached), I need the same but for T48 programmer.
Thank you.

TOP

Is there anyone in the community that owns the ADP_F48_EX-2 adapter and can do a reverse engineering of it?

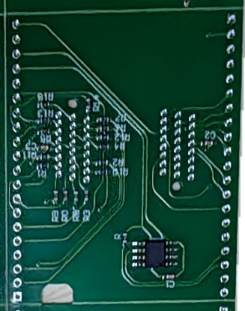

It is not complicated, that small chip on the back ("encryption" chip) is most likely an I2C eeprom used for adapter identification, it can be read easily.
Thank you, that would be a great help for the community.
I ordered the adapter and I promise to reverse engineer it and publish for everybody but I need to wait 3-4 weeks to get the adapter.

TOP

I subscribe, I asked for the same and there is no information available yet. I was very disappointed that XGecu decided not to publish this information, moreover, the manual for T48 does not exist. A schematic or reverse engineering of ADP_F48_EX-2 adapter would be really appreciated by everyone.

TOP

The usage method of T48 is exactly the same as T56, and the adapter has prompts in the software according to different programmers.
The T48 can support TSOP48/TSOP56/BGA63, which is already very good. Your requirements are not very realistic, and the self-made adapter with high requirements will cause too much trouble for developers.Moreover, some regular adapters are not expensive.

TOP

Yeah, but it's very unprofessional to say: "well, we don't have proper documentation for T48, but you know what, take this one from T56, they all work the same."
They're not the same, in T56's manual nothing applies to T48, ZIF socket is different, wiring is different. The app is the same, true, but we're not talking about the app here.
Moreover, to put a security chip on the adapters to make sure people don't do their own adapters... it's just mean... I guess I'll sell my T48 and buy another model.

TOP

The adapters of T48 are all open, except for adapters with more than 40 pins, which is due to the 48 (or more pins ) to 40pins .It is dedicated and cannot be shared with other programmers, and T48 can not use other adapters(more than 40 pins) of  other programmers.

TOP
