95128 soic read using ISP

Jaybee

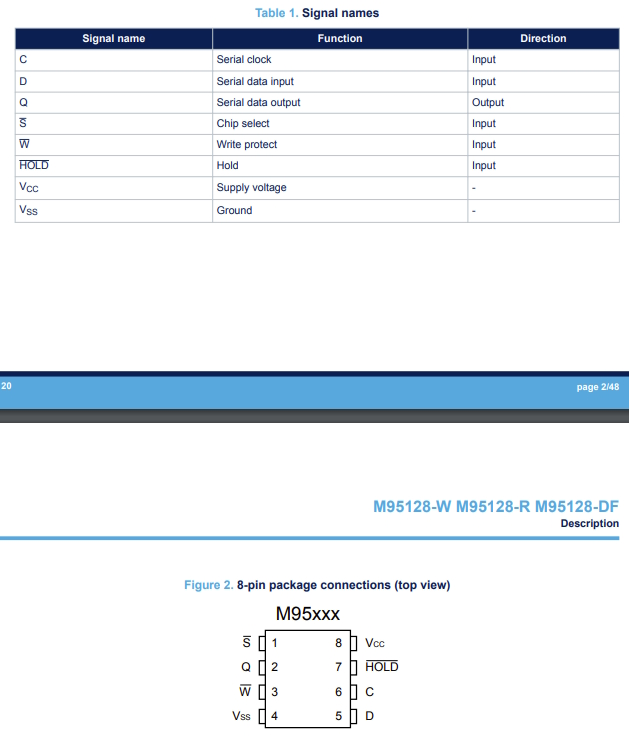

Hi, I am trying to work out which ISP pins on the T56 connect to which pins on a ST95128 SOIC chip.The pin connection in the software does not match up with the data sheet.

thanks

下载 (705.79 KB)

2023-5-23 17:07

下载 (139.59 KB)

2023-5-23 17:08

Jaybee

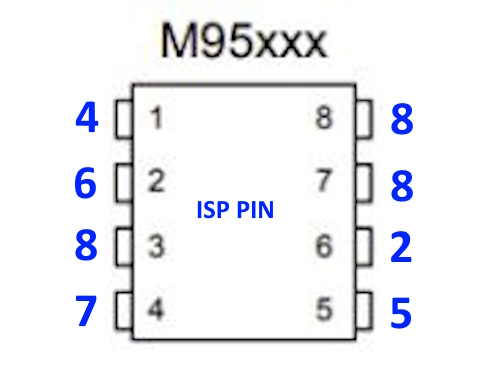

Thank you!This picture may help somebody in the future.

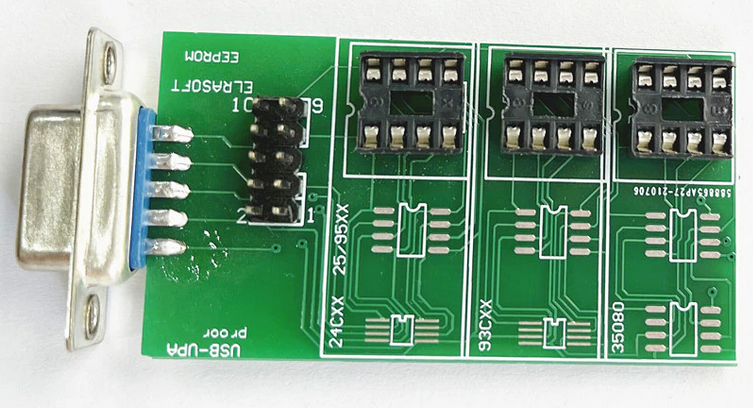

I am unable to find an ISP adapter like the one in the photo.
This would make it a lot faster and easier to connect the ISP port for reading different eeprom in circuit.

下载 (55.38 KB)

2023-5-23 20:05

下载 (713.7 KB)

2023-5-23 20:05

admin

回复 1# Jaybee

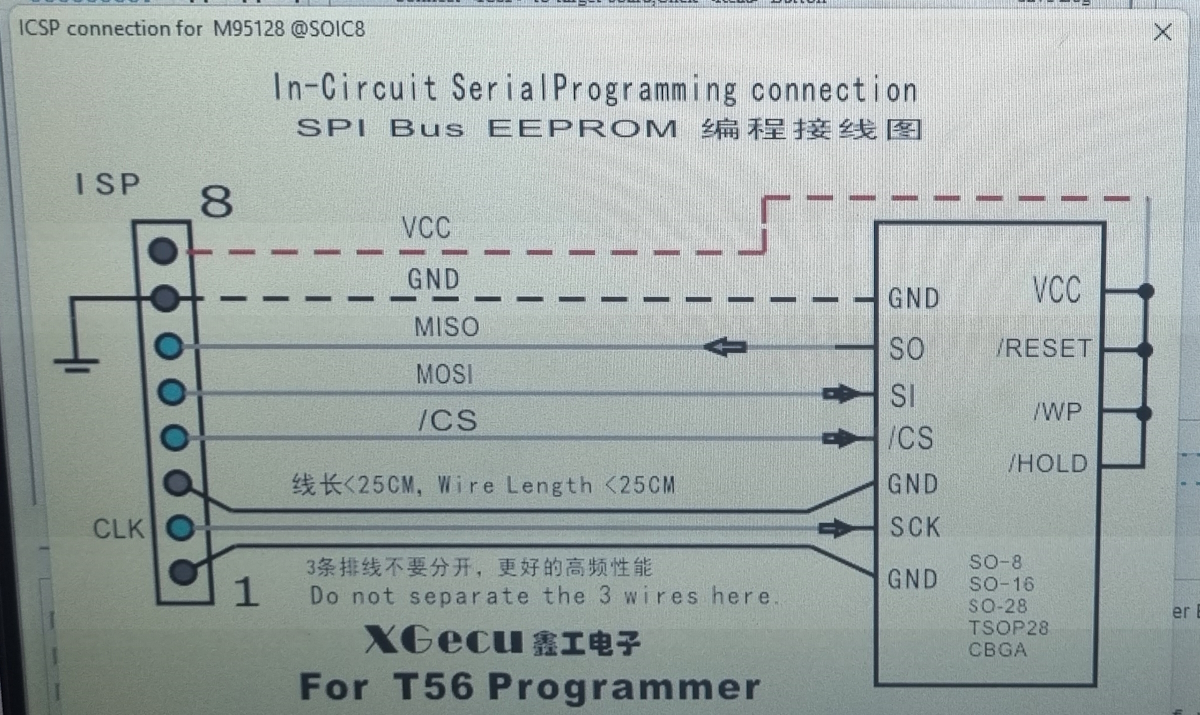

   /S->/CS
  C->SCK
  D->SI
  Q->SO
  W->WP
  HOLD->HOLD
  VSS->GND
