Hello.

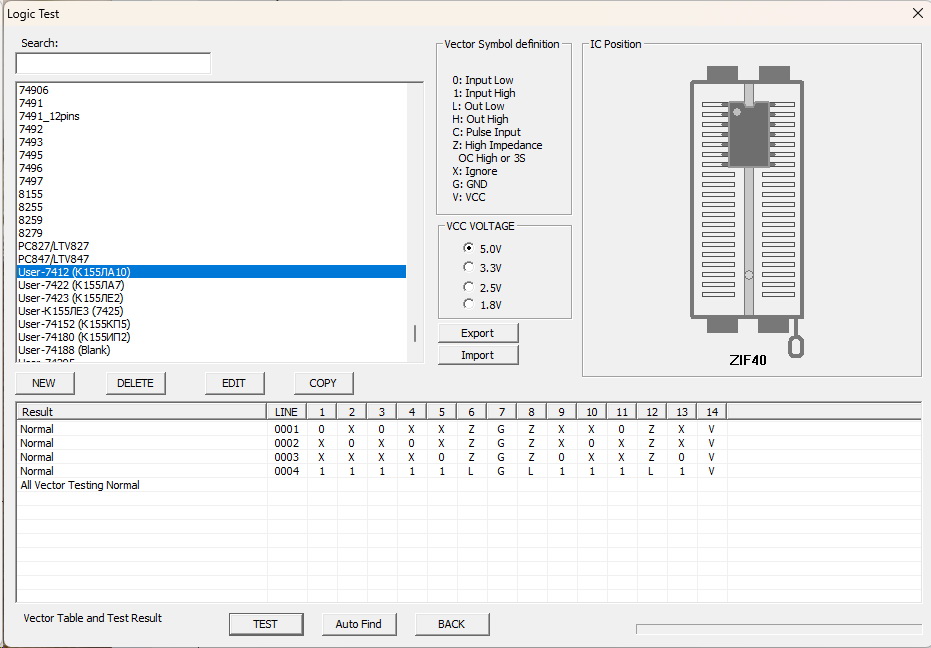

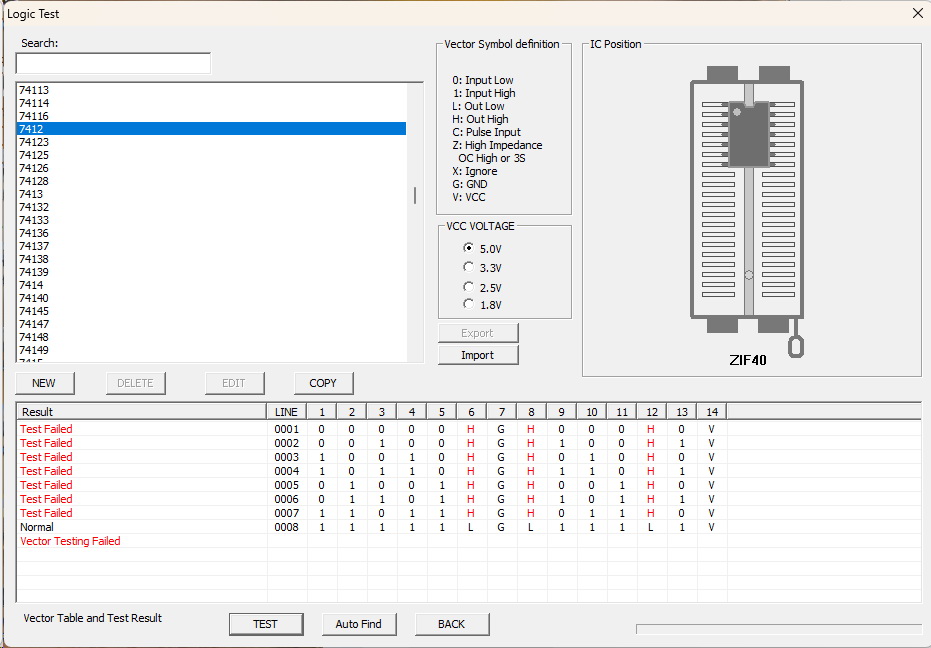

I want to share my logic tests, which are not in the programmer or are, but with errors..7412 (Russian К155ЛА10) - bad test in programator, instead of (High) - it is necessary Z (open collector)
7412 bad.jpg

7412.lgc (2.15 KB)

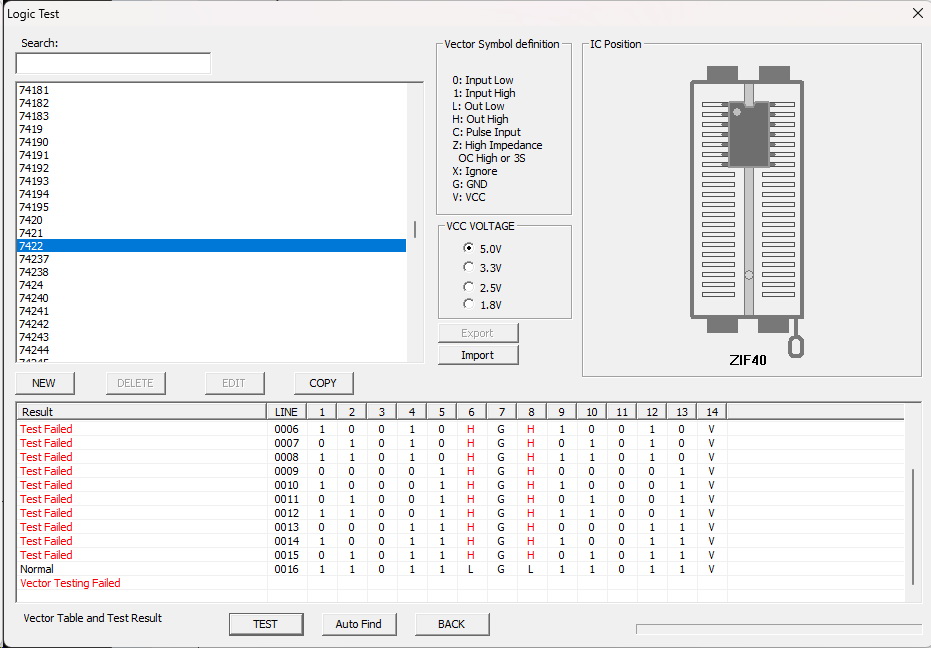

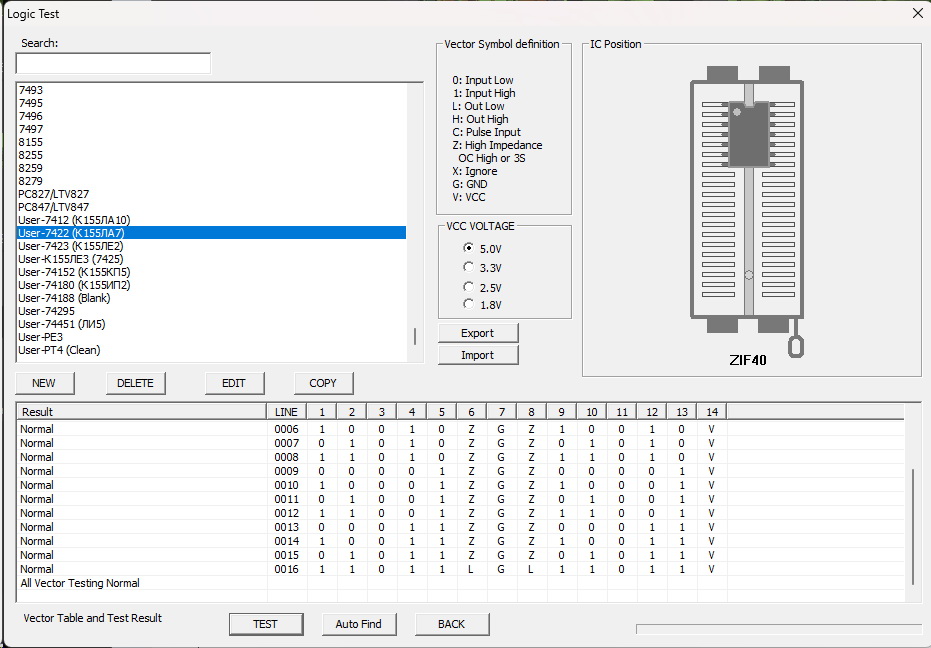

7422 (Russian К155ЛА7) - bad test in programator, instead of (High) - it is necessary Z (open collector)
7422 bad.jpg

7422.lgc (2.43 KB)

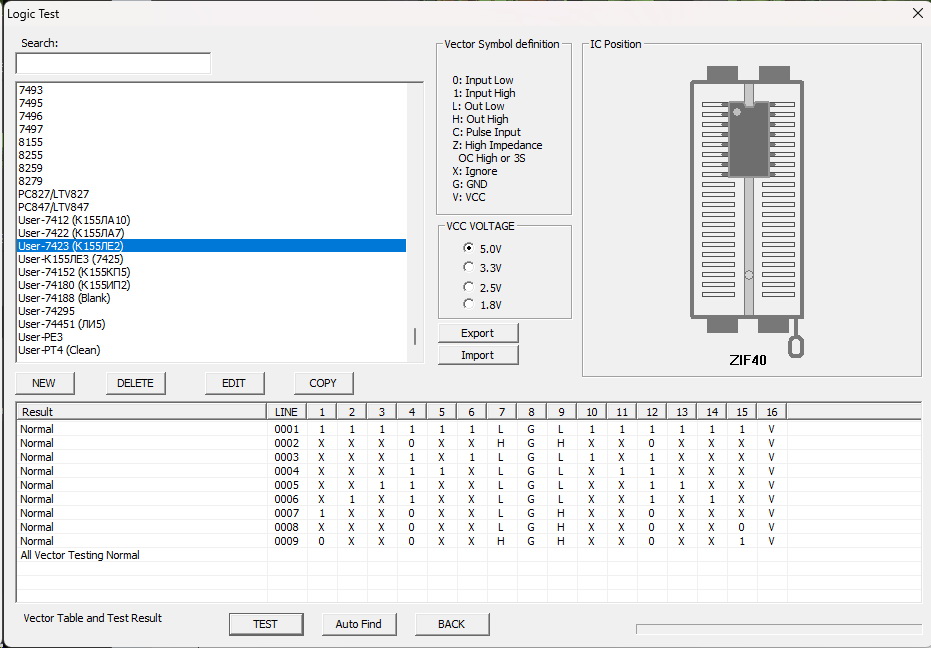

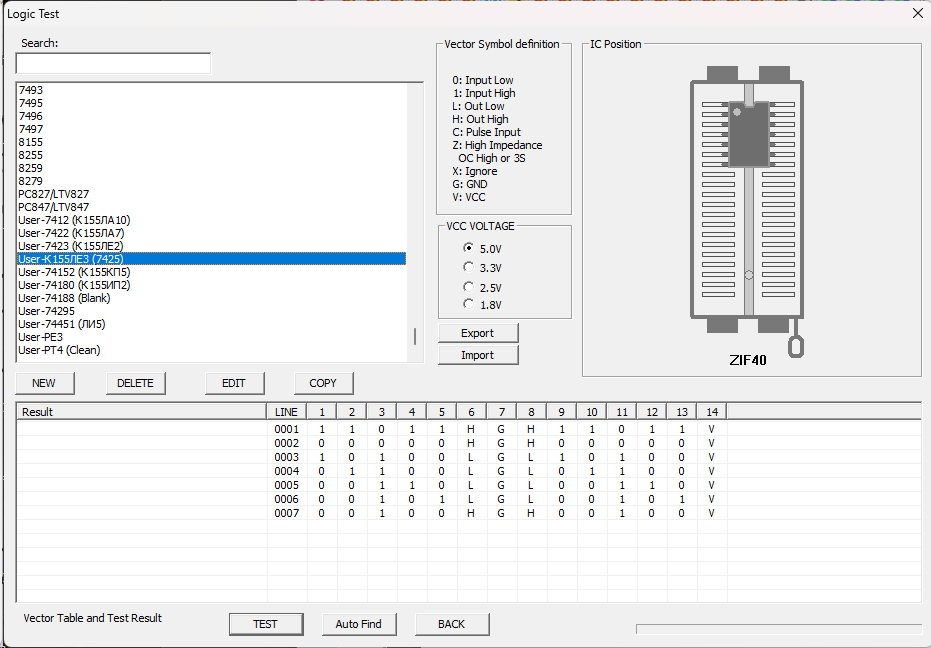

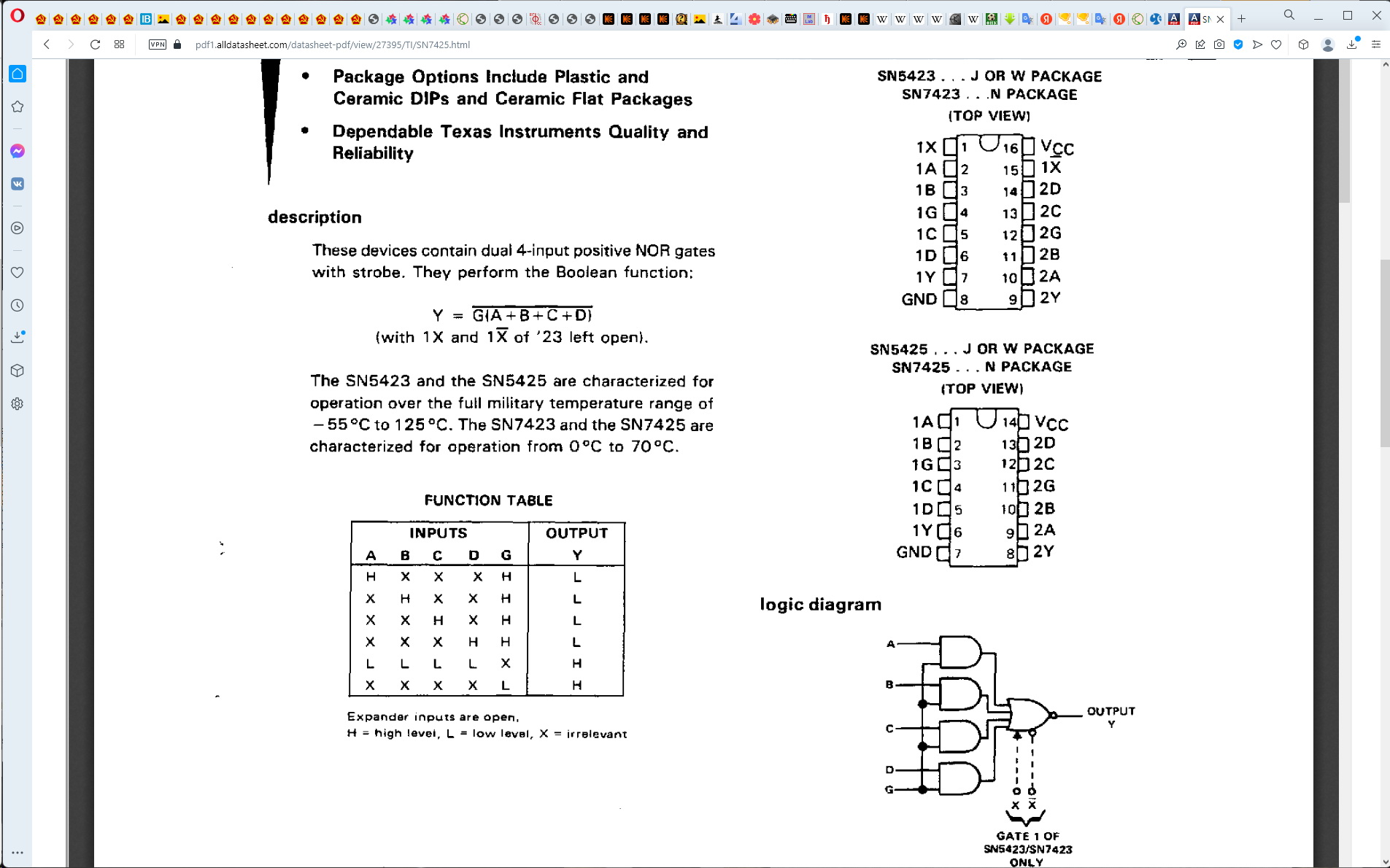

7423 (К155ЛЕ2) & 7425 (К155ЛЕ3). 7425 bad test in programator, the microcircuit has 16pin, not 20pin.

7423.lgc (2.27 KB)

7425.lgc (2.22 KB)

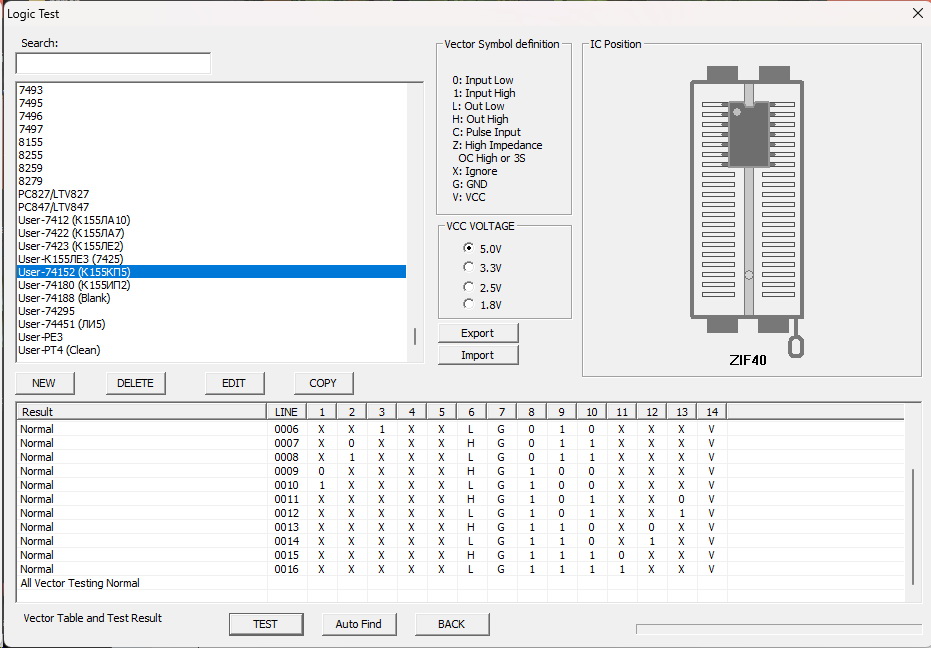

74152 (К155КП5)

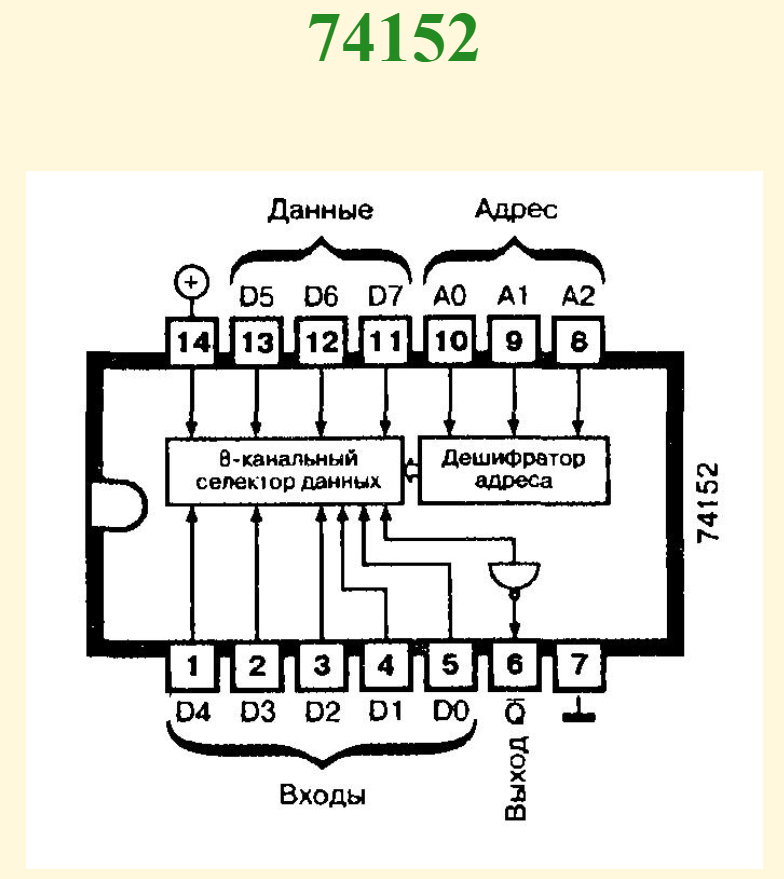

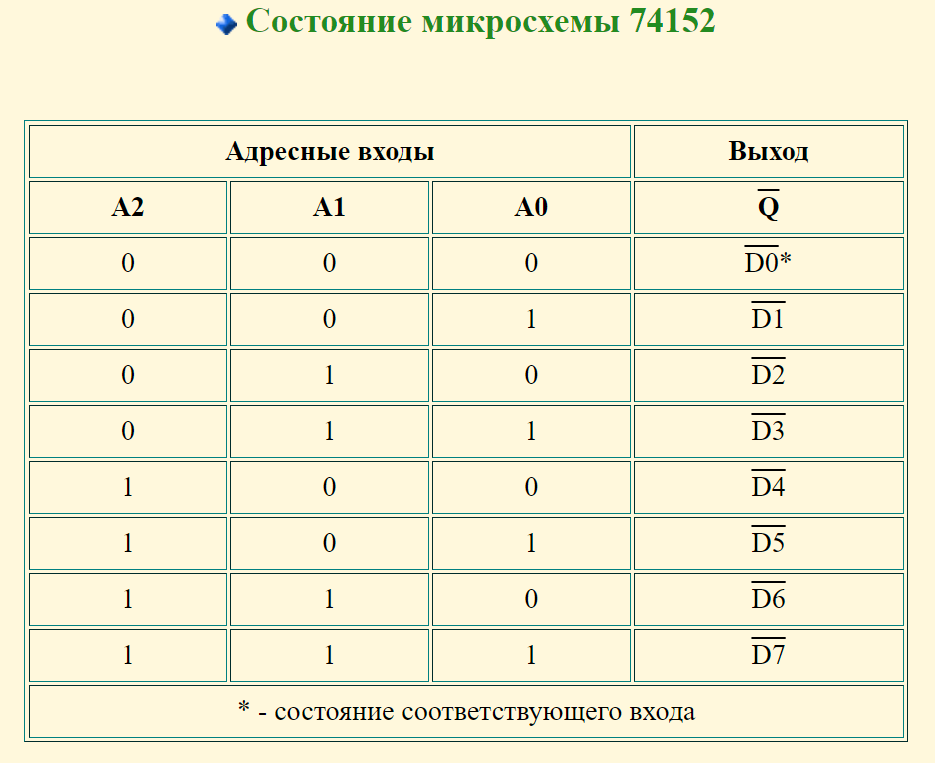

74152 a.png

74152.lgc (2.43 KB)

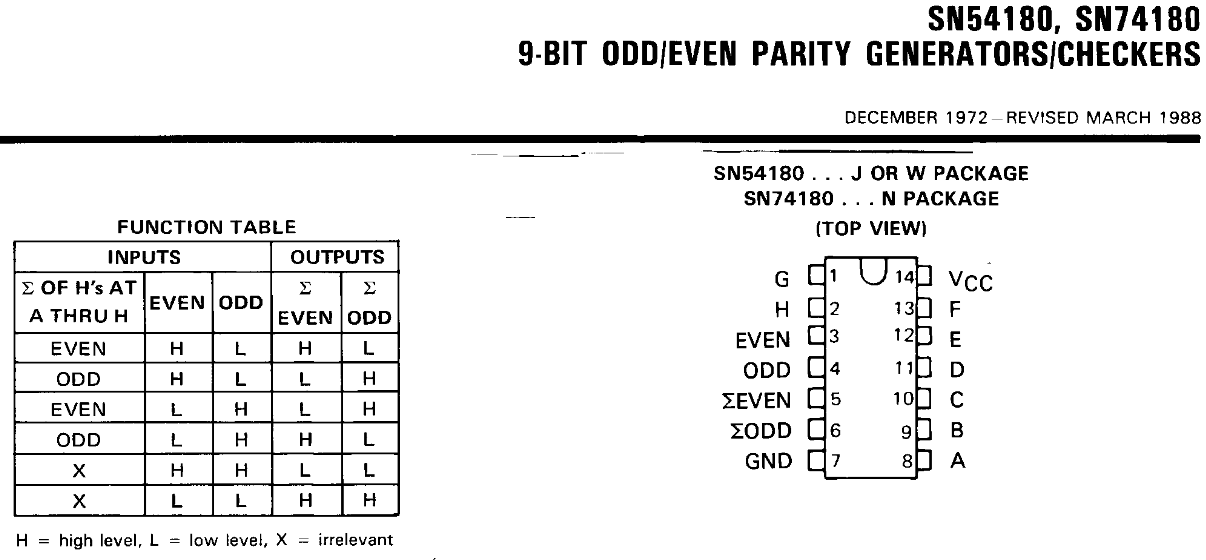

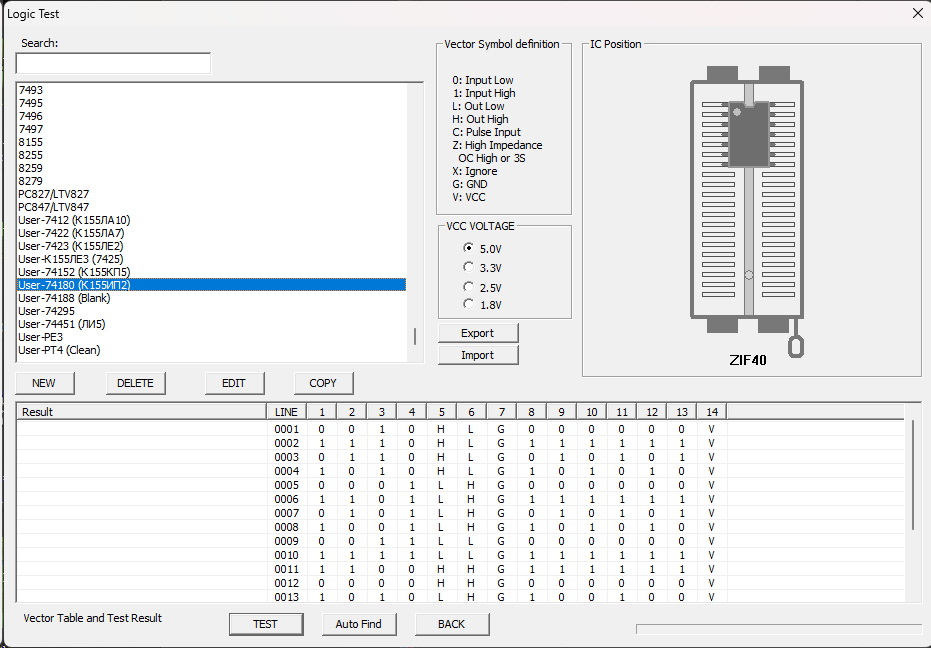

74180 (К155ИП2)

74180.lgc (2.48 KB)

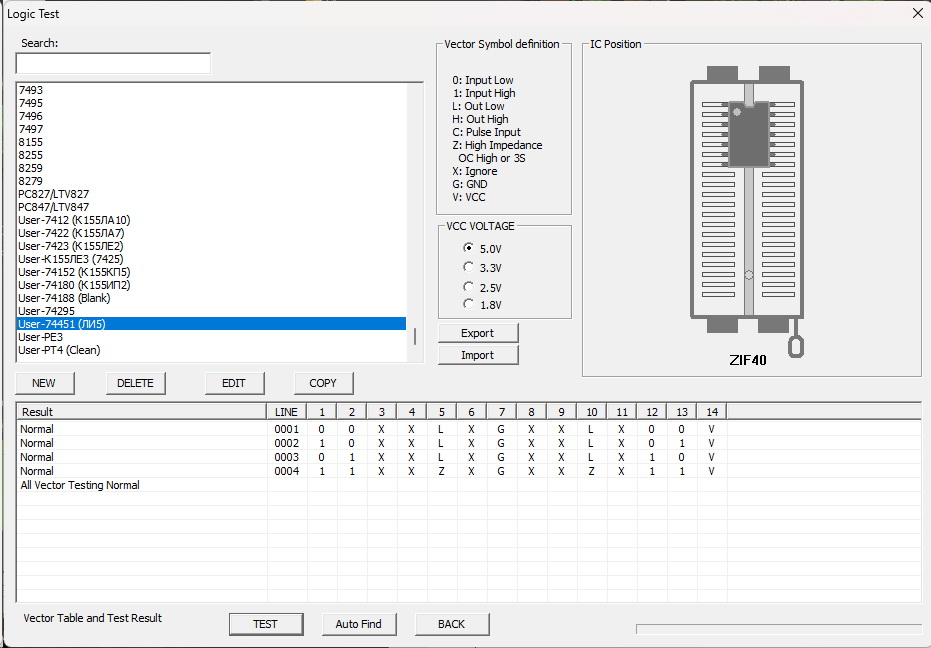

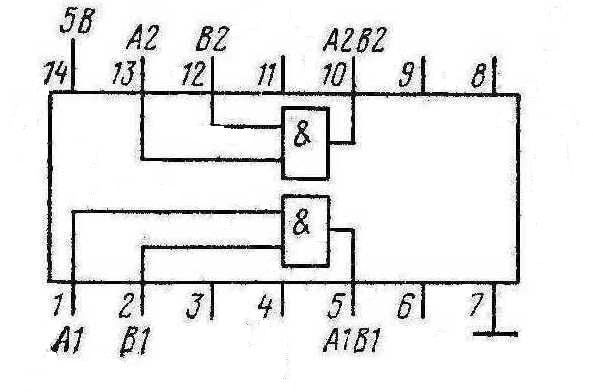

74451 (К155ЛИ5). Open Collector
74451 a.jpg

74451.lgc (2.15 KB)
