标题: Corrected Logic Test - 8255 Vector Table [打印本页]

作者: SolMayers    时间: 2025-8-31 03:13     标题: Corrected Logic Test - 8255 Vector Table

Attached is a revised Vector Table for the 8255 logic IC.

The test was performed on the NEC D8255AC-2 (PROGRAMMABLE PERIPHEAL INTERFACE):

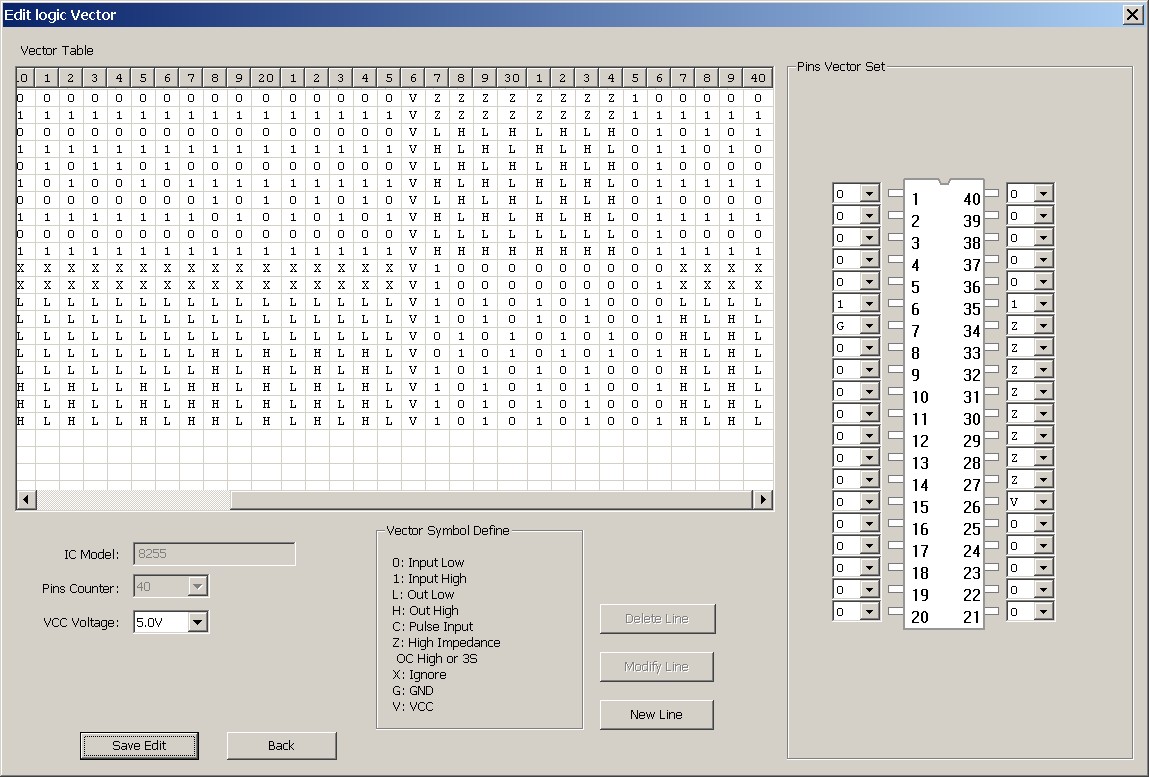

8255 - Logic Vector (1).jpg

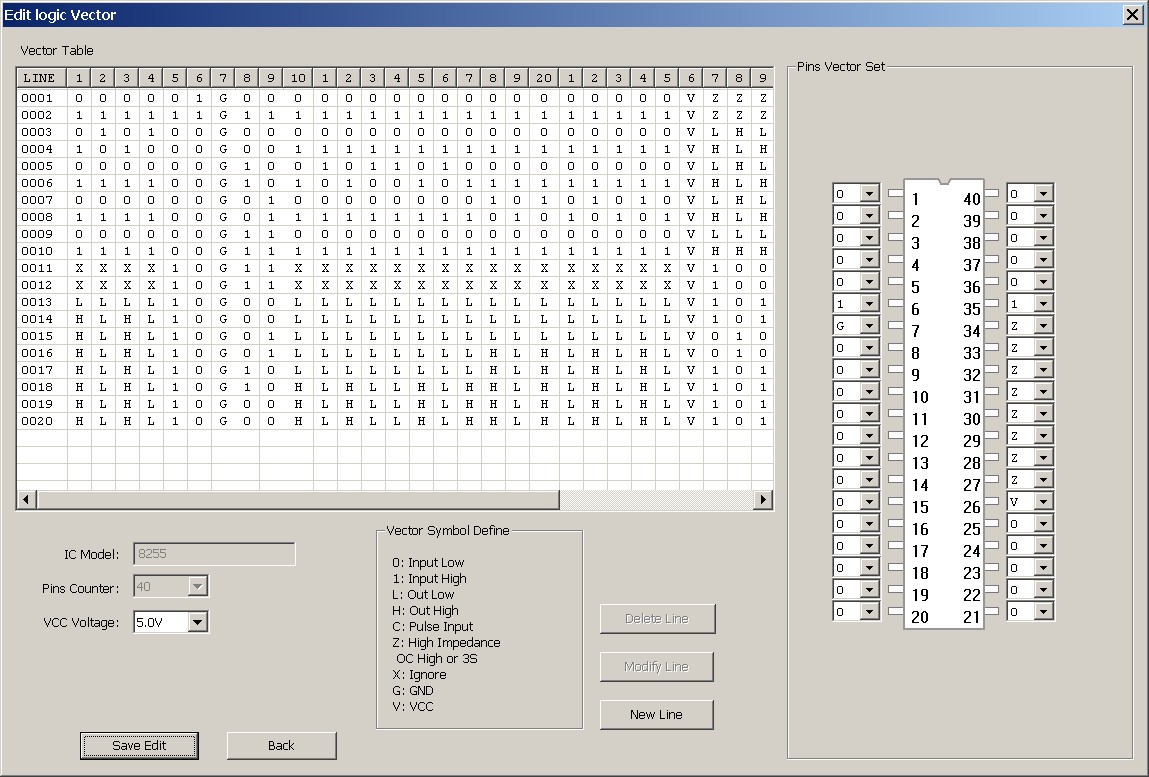

8255 - Logic Vector (2).jpg

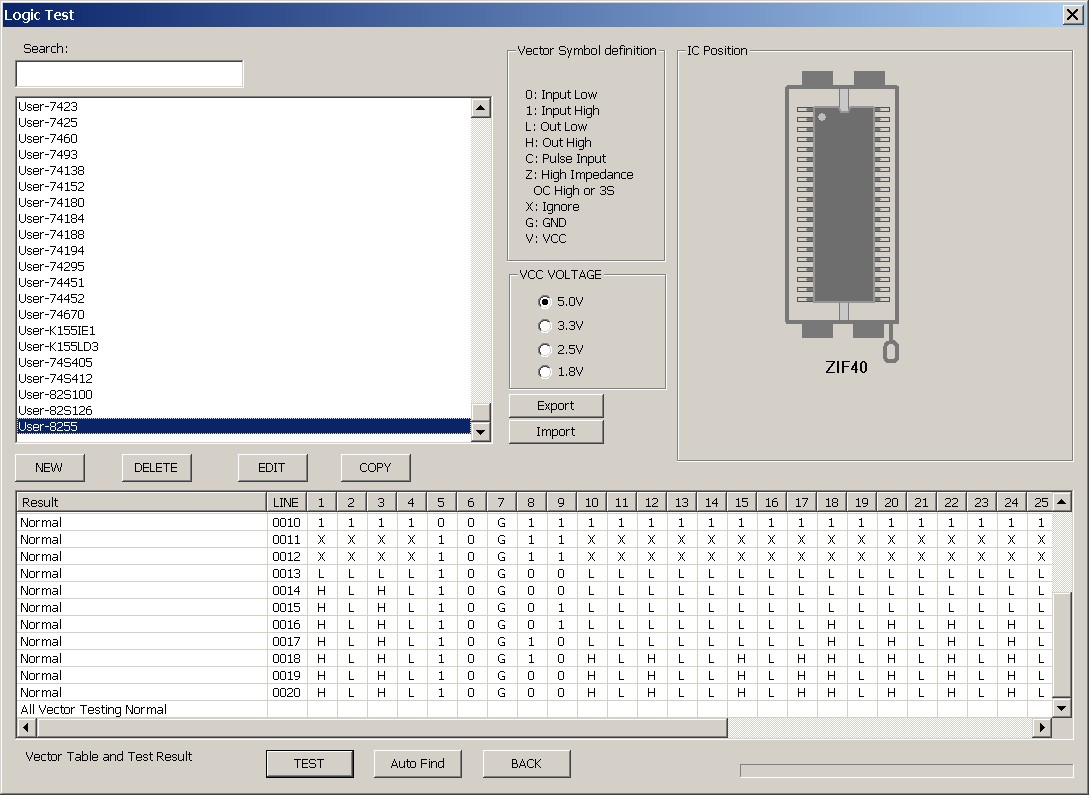

8255 - Logic Test.jpg

8255.pdf (372.04 KB)

8255.lgc (2.53 KB)

图片附件: 8255 - Logic Vector (1).jpg (2025-8-31 03:12, 206.39 KB) / 下载次数 1535
http://forums.xgecu.com/attachment.php?aid=2399&k=9305a849dfa5d8273926507a7b0909c3&t=1781181481&sid=tBsiU3



图片附件: 8255 - Logic Vector (2).jpg (2025-8-31 03:12, 203.8 KB) / 下载次数 1495
http://forums.xgecu.com/attachment.php?aid=2400&k=7ec15baeda654167db32b268c2f8d8e9&t=1781181481&sid=tBsiU3



图片附件: 8255 - Logic Test.jpg (2025-8-31 03:12, 168.38 KB) / 下载次数 1420
http://forums.xgecu.com/attachment.php?aid=2401&k=acd5b619d4857526fb25014ceb71a7b0&t=1781181481&sid=tBsiU3



附件: 8255.pdf (2025-8-31 03:13, 372.04 KB) / 下载次数 1545
http://forums.xgecu.com/attachment.php?aid=2402&k=4bb63c1160b68c0f49b26c8724091221&t=1781181481&sid=tBsiU3

附件: 8255.lgc (2025-8-31 03:13, 2.53 KB) / 下载次数 1438
http://forums.xgecu.com/attachment.php?aid=2403&k=743b9852ad55766cc4a01a29c5b717e7&t=1781181481&sid=tBsiU3
