标题: New Logic Test - 74S405, 74S412 Vector Table [打印本页]

作者: SolMayers 时间: 2025-8-13 02:19 标题: New Logic Test - 74S405, 74S412 Vector Table

Enclosed is the new layout to be added to the logic tests.

The test was performed on the UCY74S405N (Dekoder binarny 1 z 8):

74S405 - Logic Vector.jpg

74S405.pdf (214.75 KB)

74S405.lgc (2.39 KB)

The test was performed on the UCY74S412N (8-bitowa brama We/Wy):

74S412 - Logic Vector.jpg

74S412.pdf (325.97 KB)

74S412.lgc (2.48 KB)

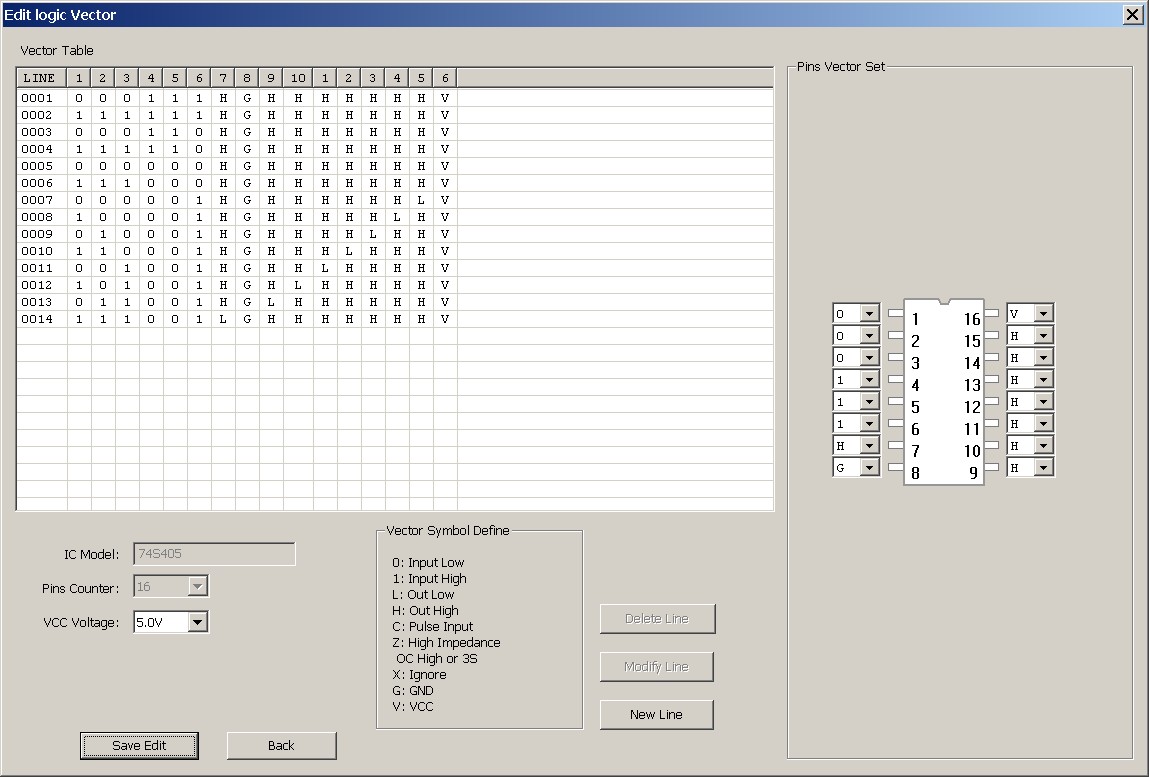

图片附件: 74S405 - Logic Vector.jpg (2025-8-13 02:13, 140.86 KB) / 下载次数 1448
http://forums.xgecu.com/attachment.php?aid=2376&k=34e59de530278e9f44c29b95ac7b00bc&t=1793442484&sid=1miIiN

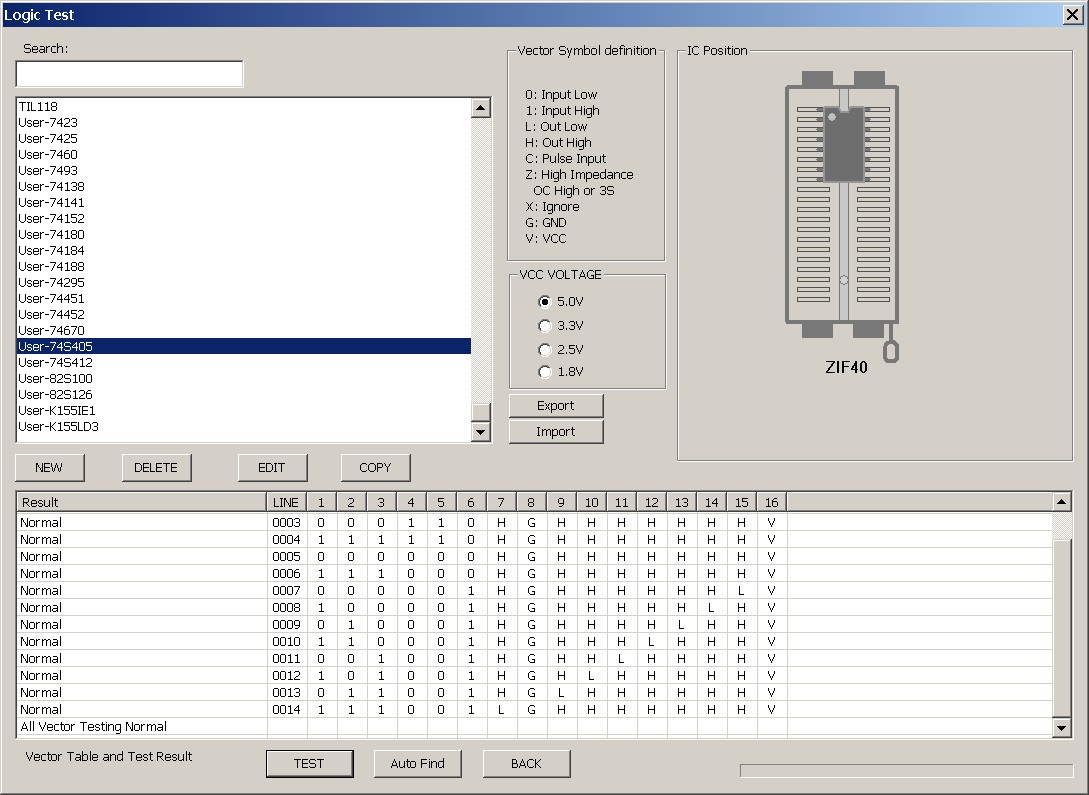

图片附件: 74S405 - Logic Test.jpg (2025-8-13 02:14, 153.8 KB) / 下载次数 1457
http://forums.xgecu.com/attachment.php?aid=2377&k=bc55370640e4c9d808933581bc4abcef&t=1793442484&sid=1miIiN

附件: 74S405.pdf (2025-8-13 02:14, 214.75 KB) / 下载次数 1526
http://forums.xgecu.com/attachment.php?aid=2378&k=2ebbc49f84d28632f61a7767c07496da&t=1793442484&sid=1miIiN

附件: 74S405.lgc (2025-8-13 02:14, 2.39 KB) / 下载次数 1419
http://forums.xgecu.com/attachment.php?aid=2379&k=9ee12fe49d5c8e9f5ba0720e6221d0b0&t=1793442484&sid=1miIiN

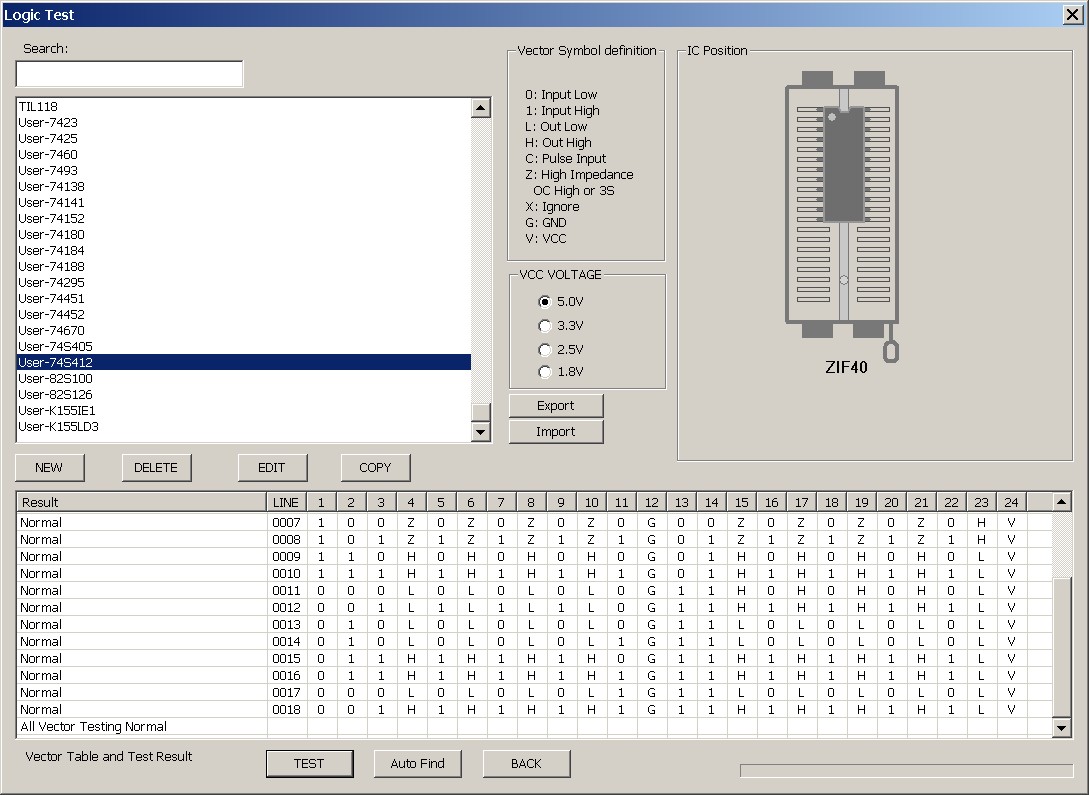

图片附件: 74S412 - Logic Vector.jpg (2025-8-13 02:17, 174.84 KB) / 下载次数 1464
http://forums.xgecu.com/attachment.php?aid=2380&k=0a4ffcba2b1d24b7beef1ce585f2e606&t=1793442484&sid=1miIiN

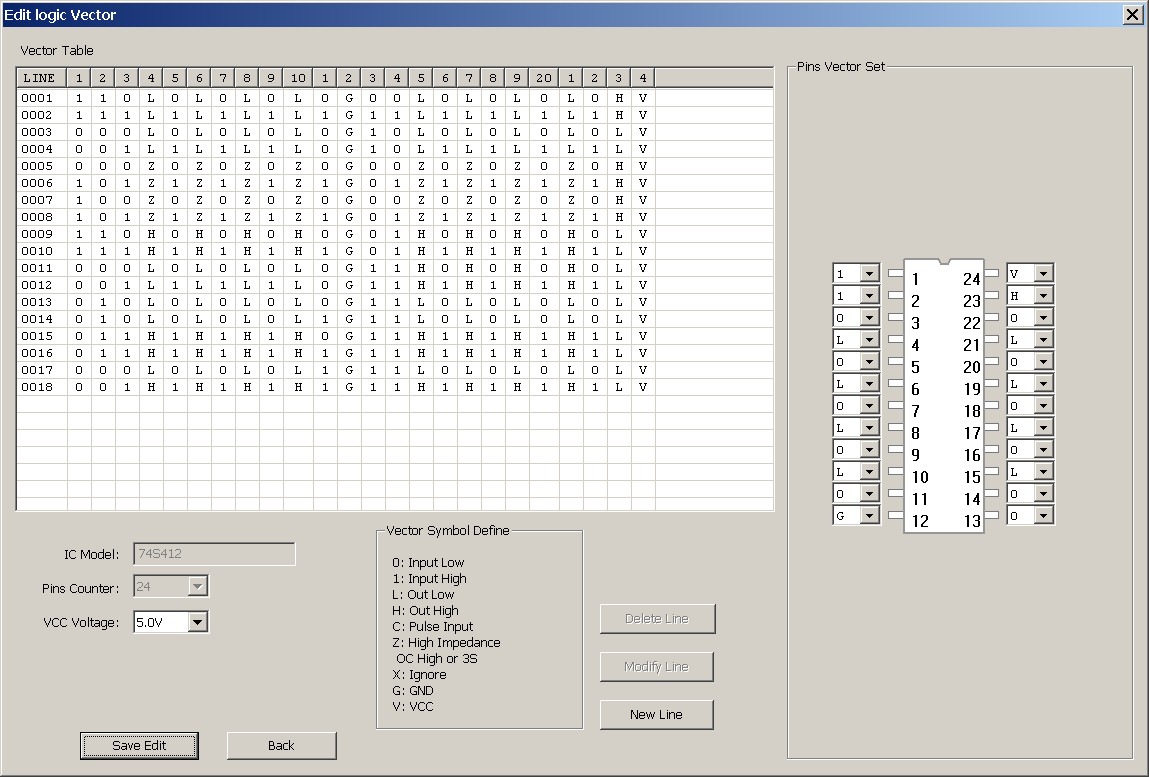

图片附件: 74S412 - Logic Test.jpg (2025-8-13 02:17, 168.04 KB) / 下载次数 1493
