标题: New Logic Test - 74184 Vector Table [打印本页]

作者: SolMayers    时间: 2024-4-14 23:30     标题: New Logic Test - 74184 Vector Table

Enclosed is the new layout to be added to the logic tests.
The test was performed on the SN74184 (BCD TO BINARY AND BINARY TO BCD CONVERTERS) chip from Texas Instruments.

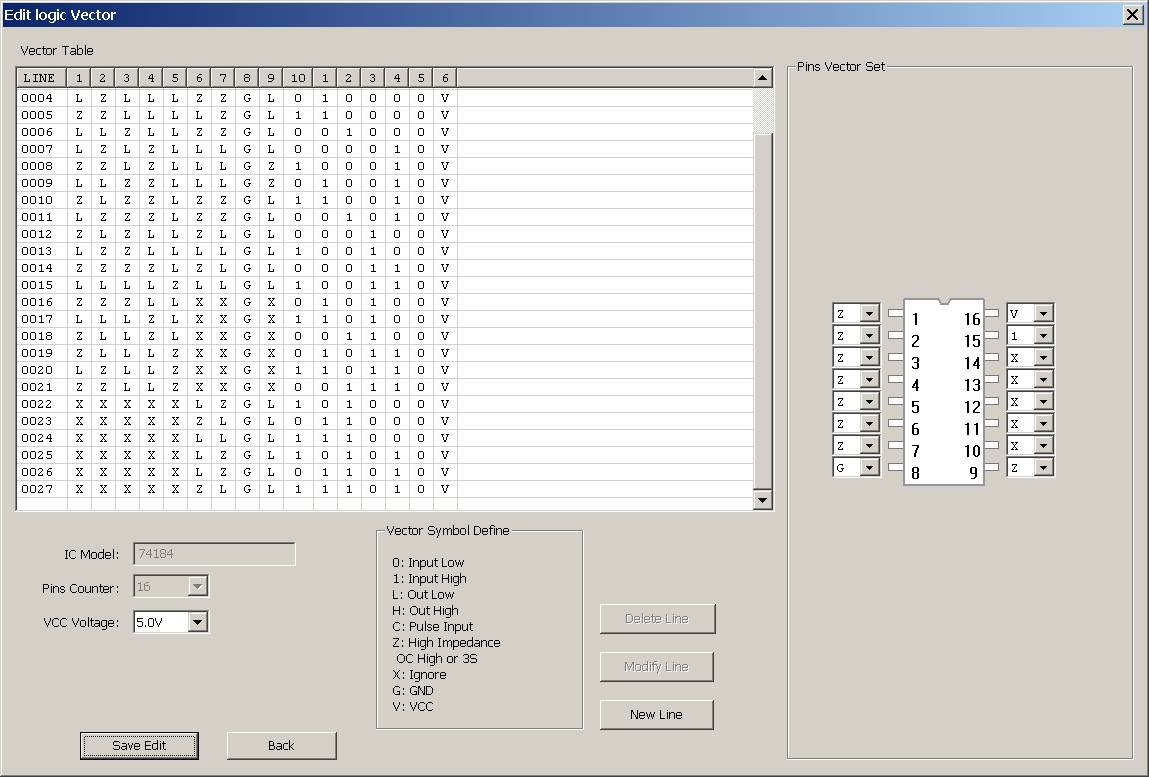

74184 - Logic Vector (1).jpg

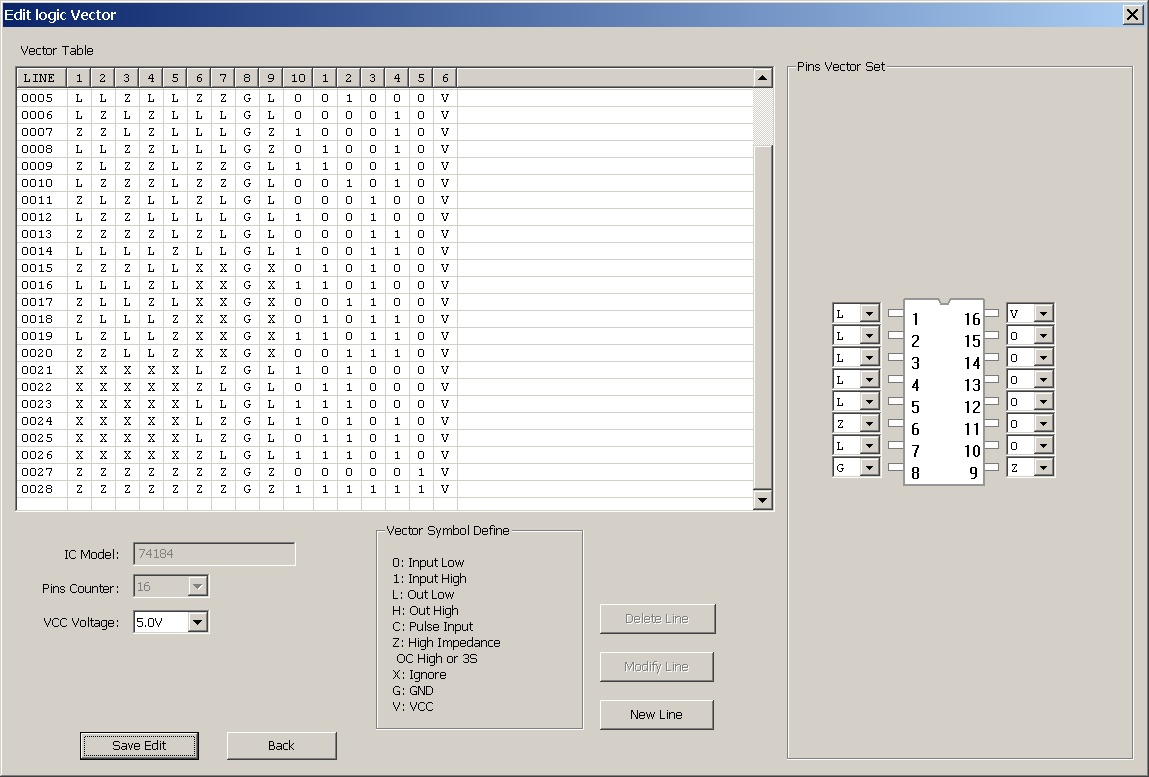

74184 - Logic Vector (2).jpg

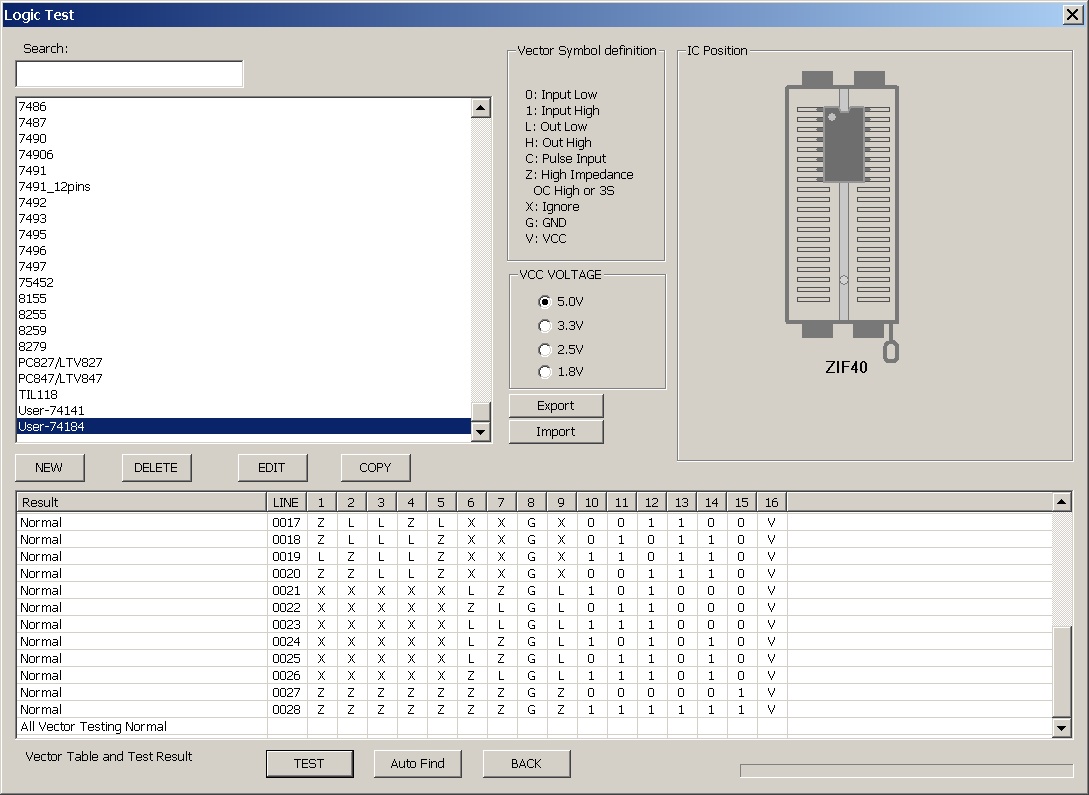

74184 - Logic Test (1).jpg

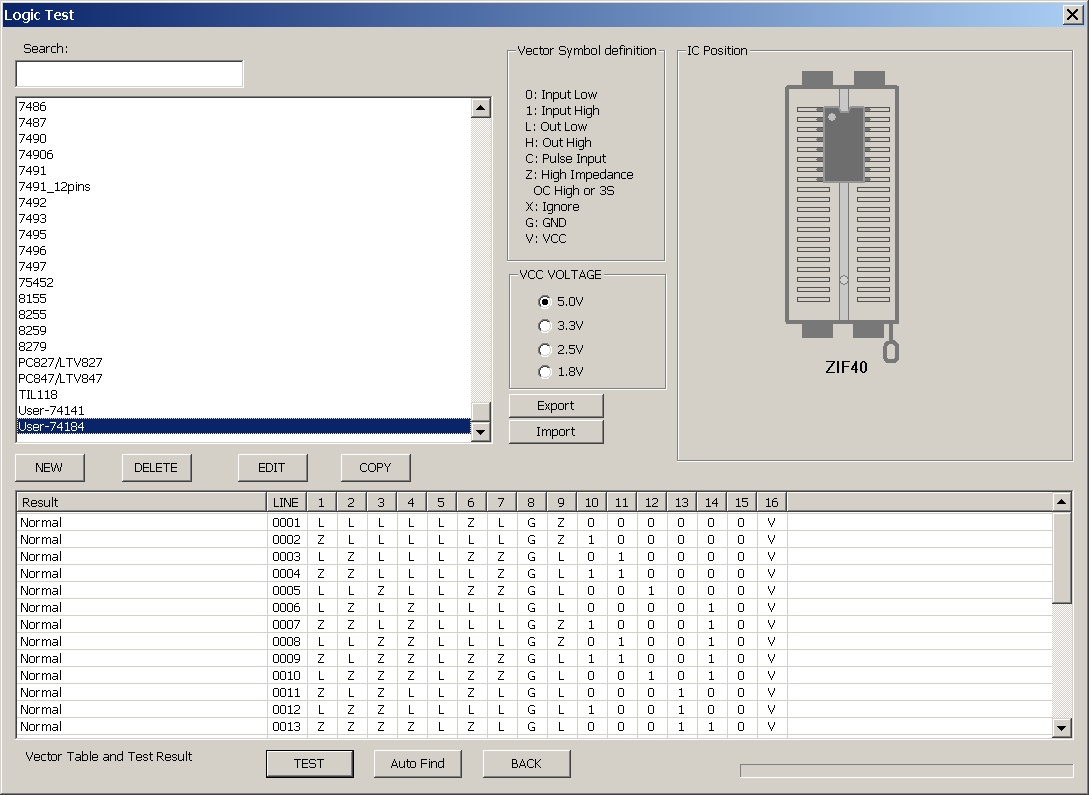

74184 - Logic Test (2).jpg

SN74184.pdf (385.51 KB)

74184.lgc (2.69 KB)

图片附件: 74184 - Logic Vector (1).jpg (2024-4-14 23:28, 279.86 KB) / 下载次数 6165
http://forums.xgecu.com/attachment.php?aid=2165&k=92ccff169e96d4c75da94d3ba31619ef&t=1747610950&sid=B41822



图片附件: 74184 - Logic Vector (2).jpg (2024-4-14 23:28, 276.21 KB) / 下载次数 6249
http://forums.xgecu.com/attachment.php?aid=2166&k=eb1571cd2a71664bef30a9fb0a4e1bea&t=1747610950&sid=B41822



图片附件: 74184 - Logic Test (1).jpg (2024-4-14 23:28, 254.84 KB) / 下载次数 6194
http://forums.xgecu.com/attachment.php?aid=2167&k=f5672e209e741fde5d11de19cedf06d7&t=1747610950&sid=B41822



图片附件: 74184 - Logic Test (2).jpg (2024-4-14 23:29, 255.7 KB) / 下载次数 6137
http://forums.xgecu.com/attachment.php?aid=2168&k=af3786fe79fdfa87d0b0b7bd8d7b2f74&t=1747610950&sid=B41822



附件: SN74184.pdf (2024-4-14 23:30, 385.51 KB) / 下载次数 5433
http://forums.xgecu.com/attachment.php?aid=2169&k=a662dcb8c4b13f022da75d88516d9a1a&t=1747610950&sid=B41822

附件: 74184.lgc (2024-4-14 23:30, 2.69 KB) / 下载次数 4194
http://forums.xgecu.com/attachment.php?aid=2170&k=2997da8d1d267b17674f6e8080b80d00&t=1747610950&sid=B41822
