作者: SolMayers 时间: 2024-4-14 23:23 标题: New Logic Test - 74141 Vector Table

Enclosed is the new layout to be added to the logic tests.
The test was performed on the SN74141N (BCD to Decimal Decoder/Driver) chip from Texas Instruments.

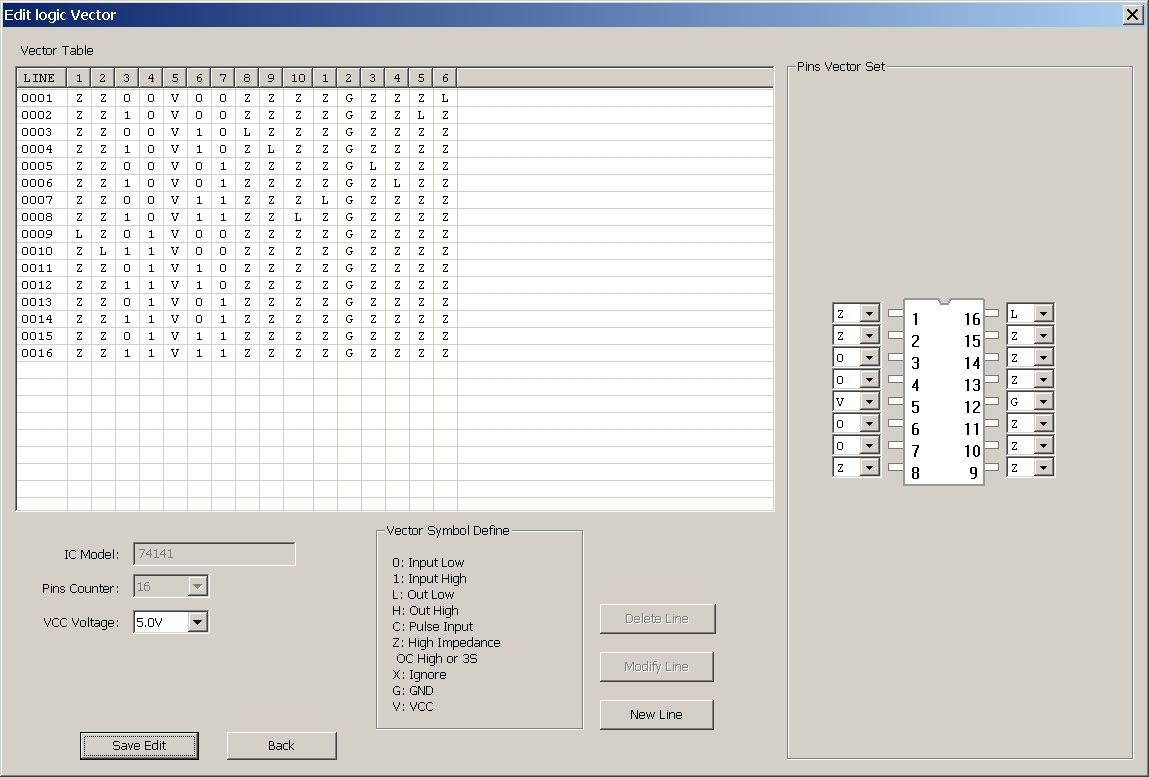

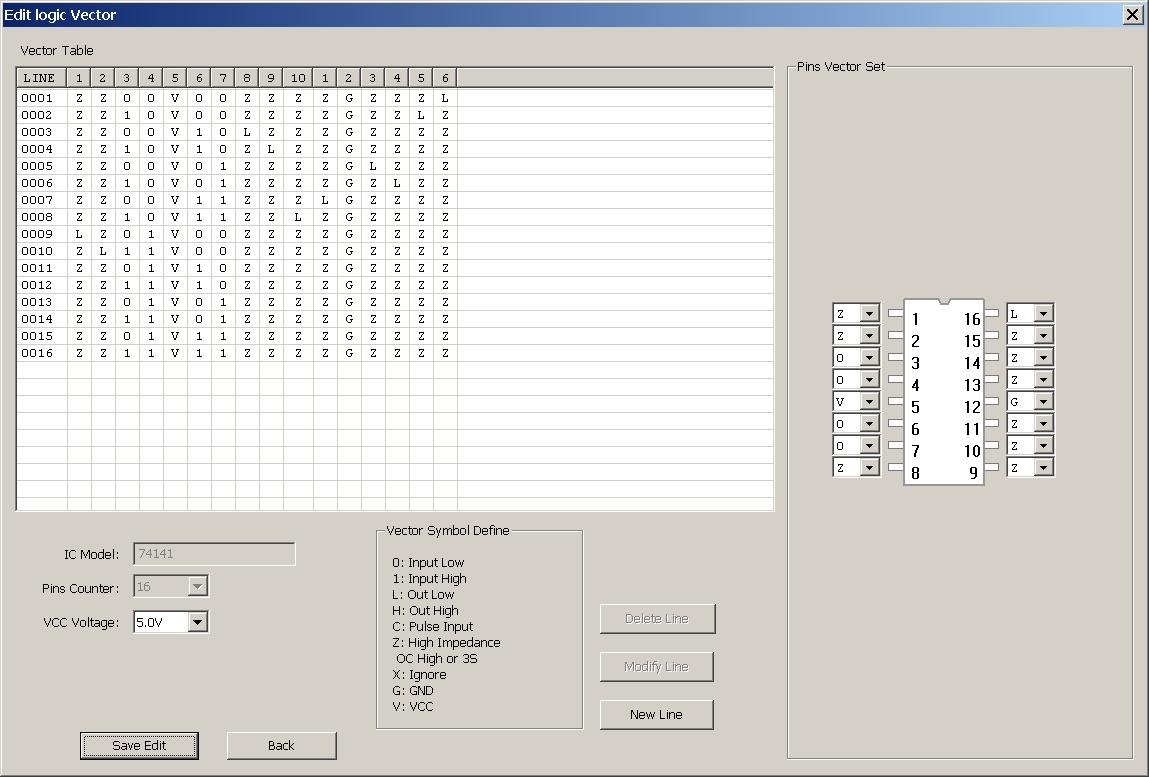

74141 - Logic Vector.jpg

SN74141.pdf (120.24 KB)

74141.lgc (2.43 KB)

图片附件: 74141 - Logic Vector.jpg (2024-4-14 23:18, 247.48 KB) / 下载次数 4220
http://forums.xgecu.com/attachment.php?aid=2159&k=024f52d8b72f4cf6418afb5ef844b84d&t=1732565833&sid=fI55EO

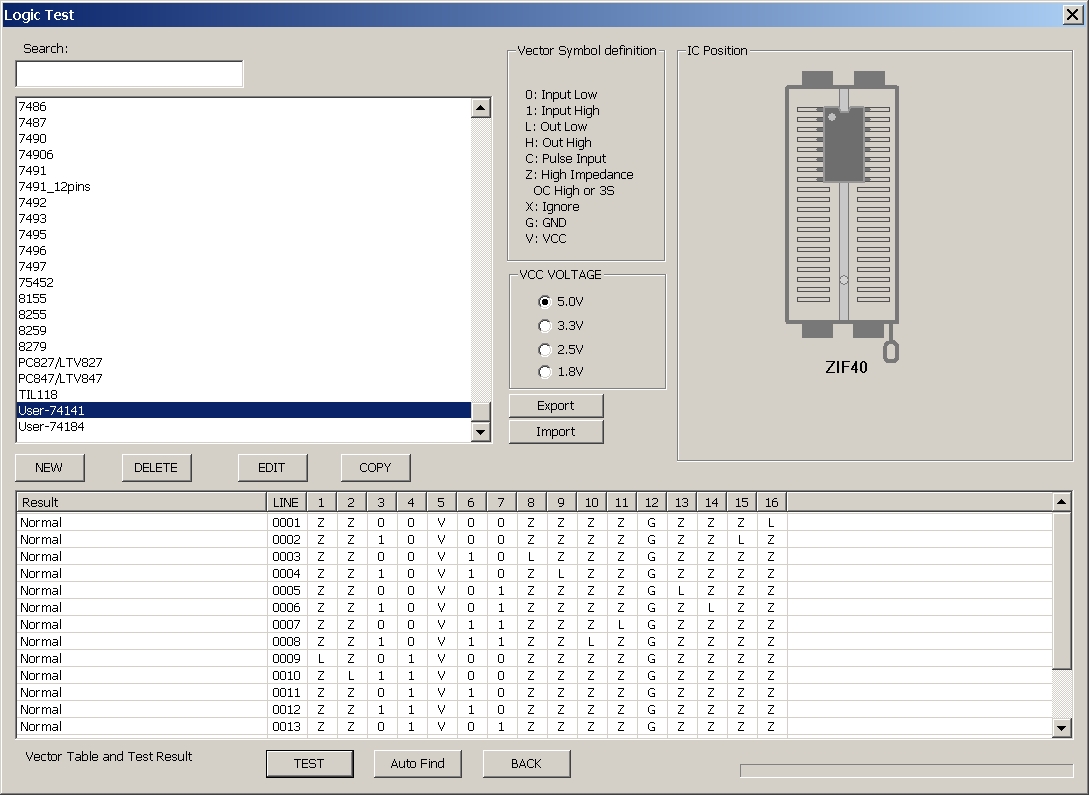

图片附件: 74141 - Logic Test (1).jpg (2024-4-14 23:19, 253.45 KB) / 下载次数 4212
http://forums.xgecu.com/attachment.php?aid=2160&k=6f76b1821222f1e03f11437519ef60db&t=1732565833&sid=fI55EO

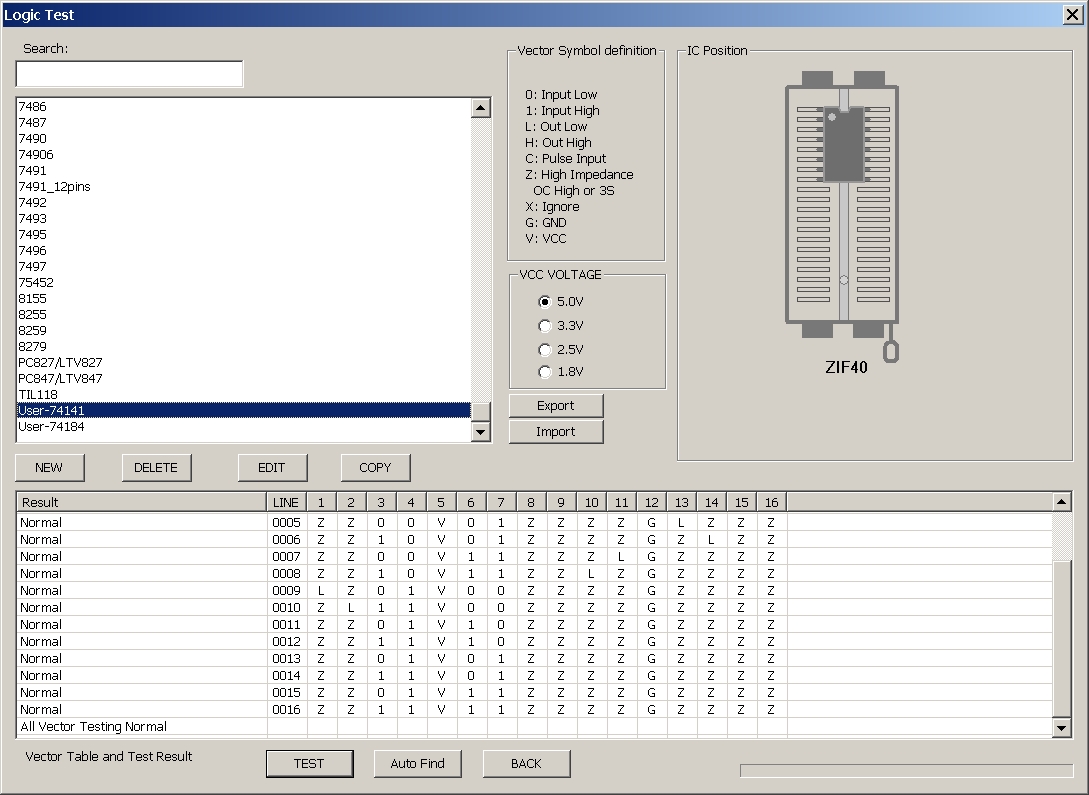

图片附件: 74141 - Logic Test (2).jpg (2024-4-14 23:19, 255.41 KB) / 下载次数 4242
