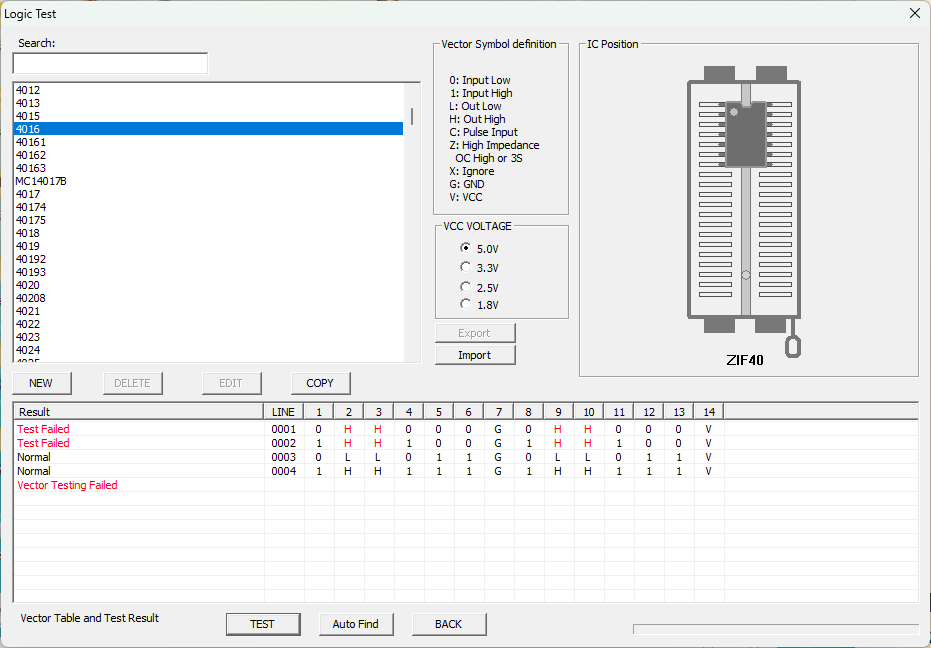

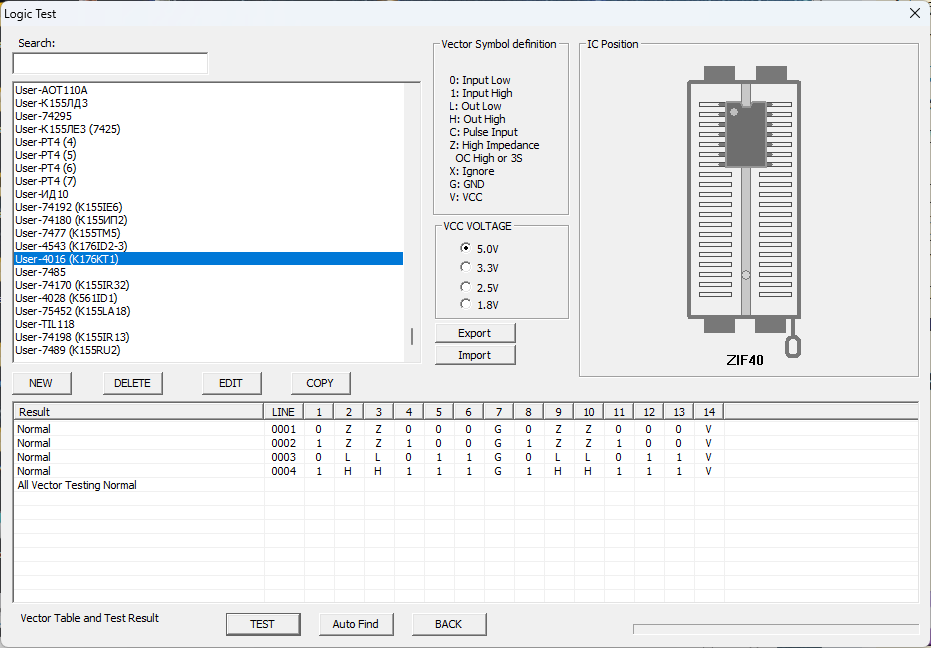

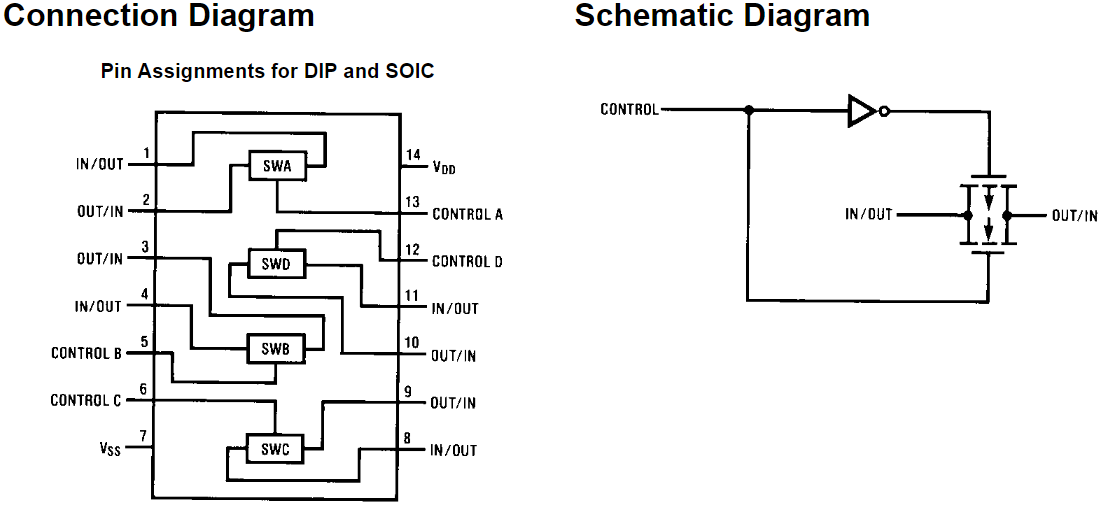

Share my new logic tests:1) 4016 (К176КТ1), test in programmer is false (when "Control=0" pin 5,6,12,13 -> In/Out = Z (OC))
4016 (Wrong).png

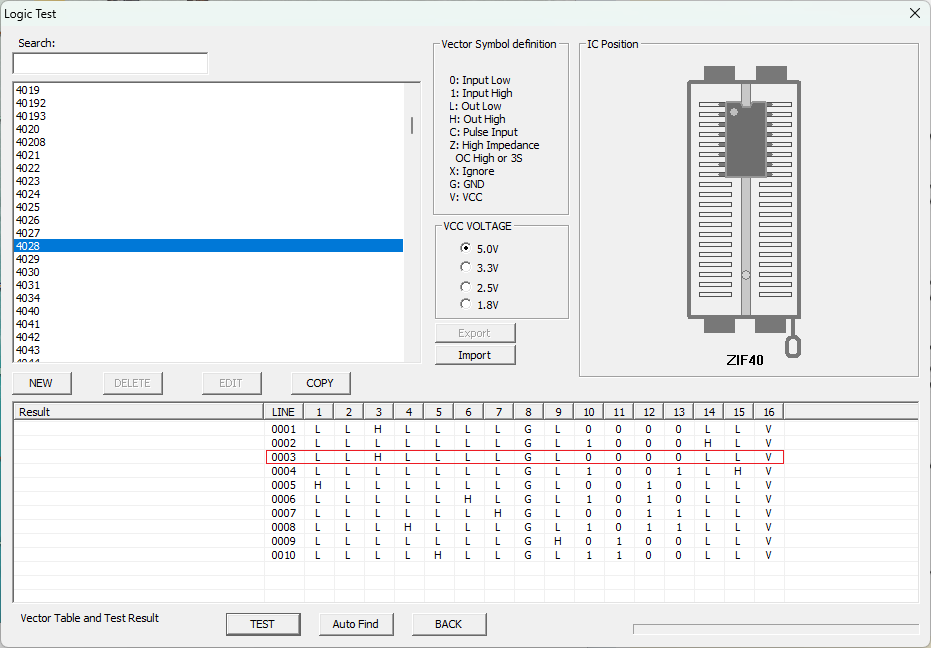

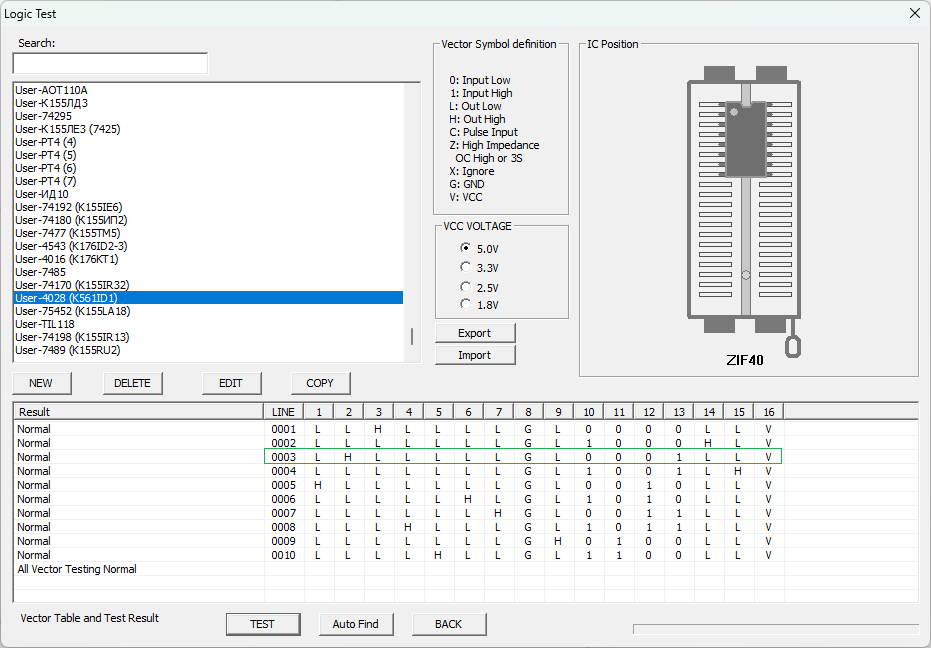

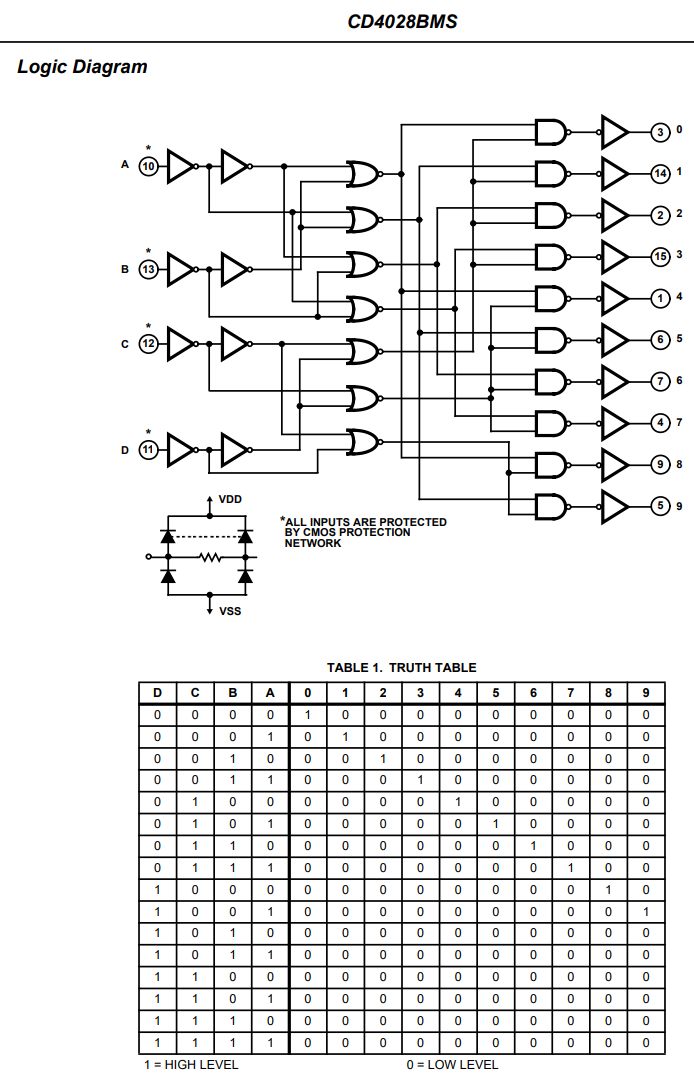

2) 4028 (К561ИД1) error in a prog.test, "line 3"="line 1"
4028 (Wrong).png

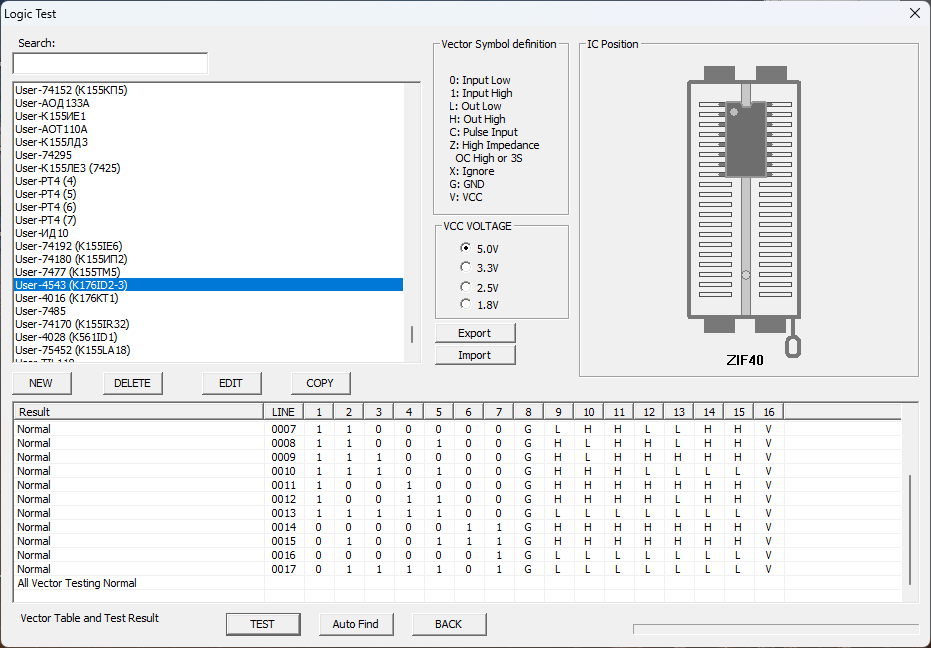

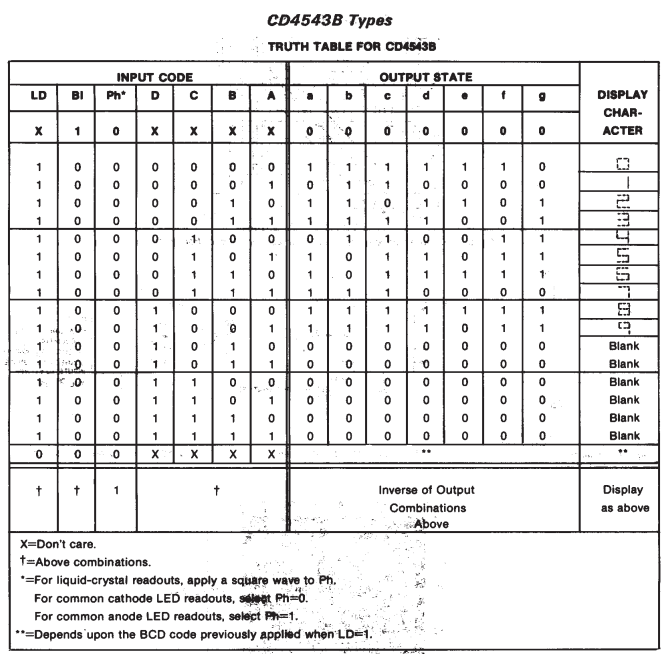

3) 4543 (К176ИД2), more complete test
4543 (K176ID2) 01.png

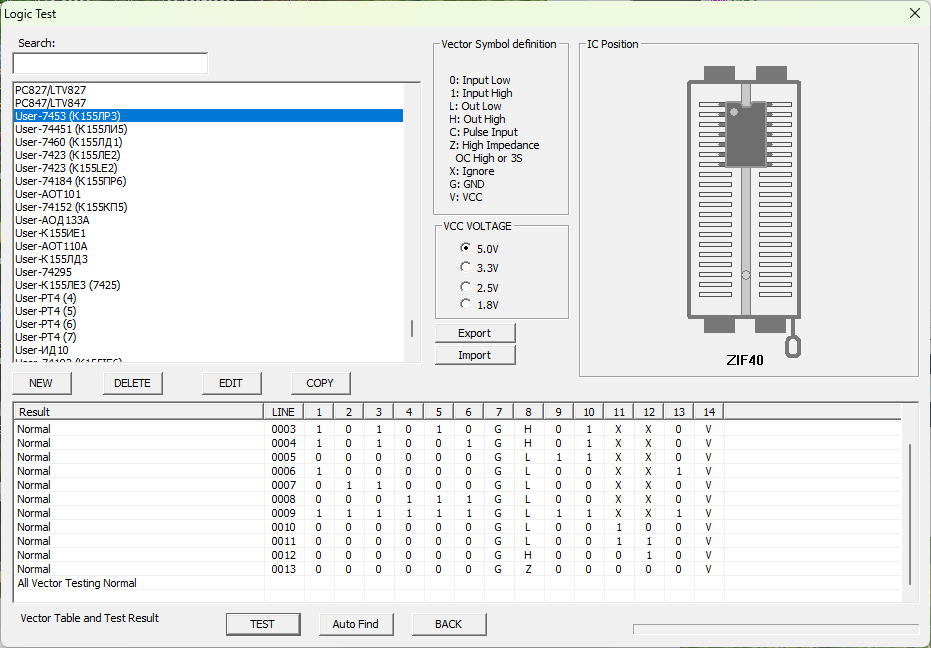

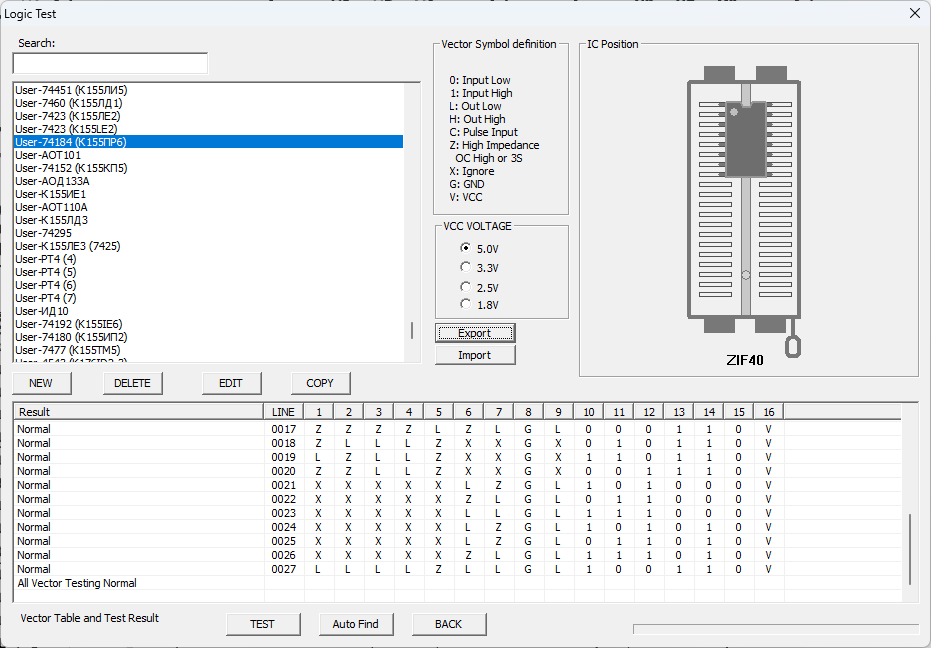

4)7453 (К155ЛР3)
7453 (K155LR3) 01.png

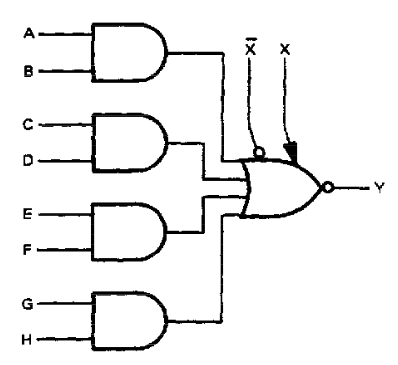

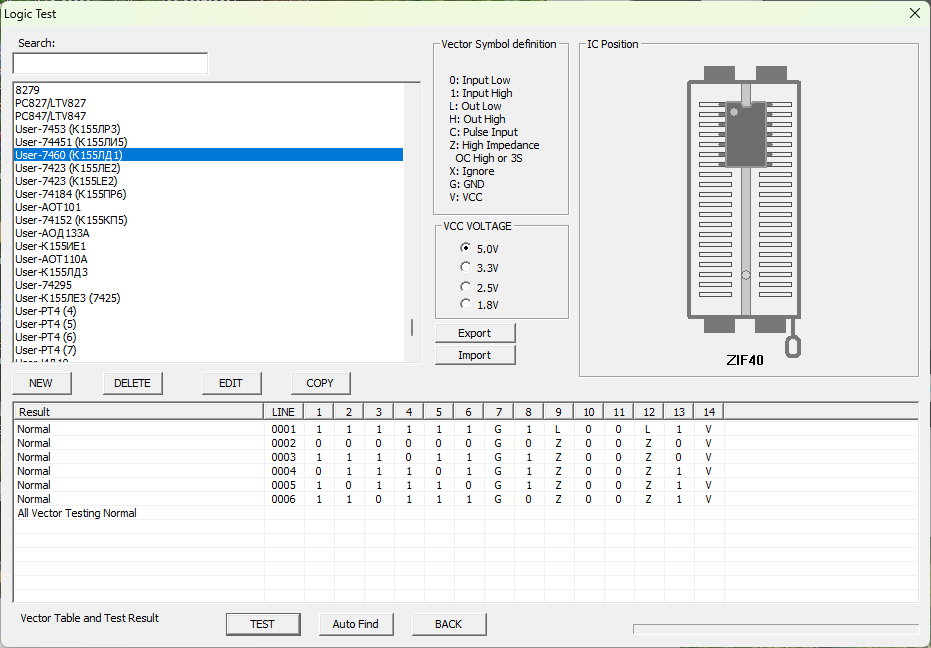

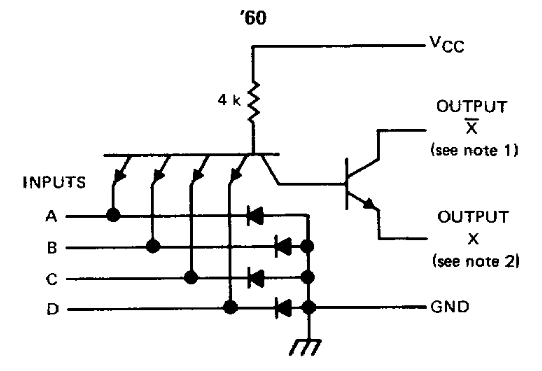

5) 7460 (К155ЛД1) Correct test
7460 (K155LD1).png

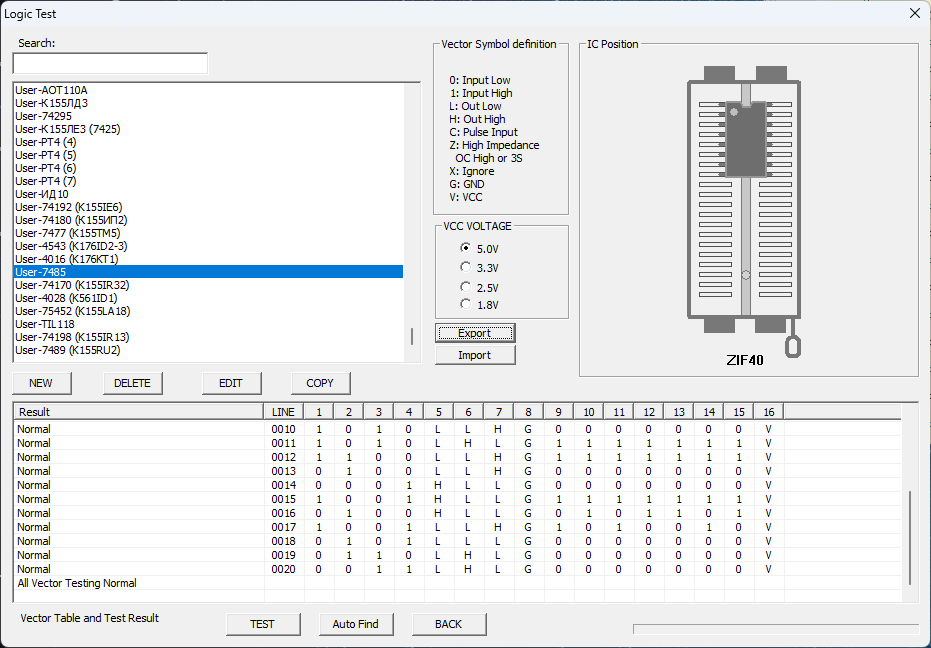

6) 7485 Full test

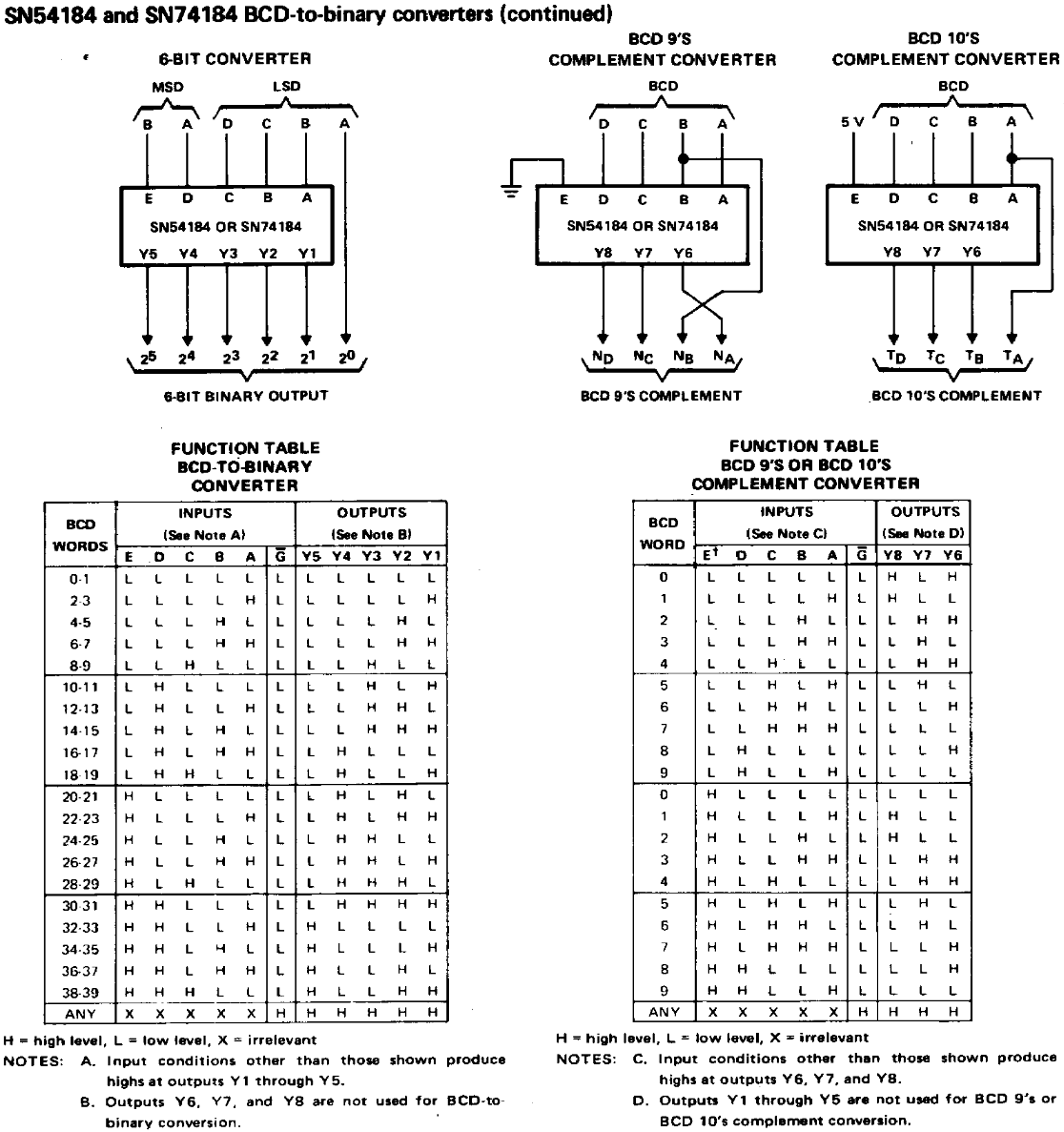

7) 74184 (К155ПР6)
74184 (K155PR6) 01.png

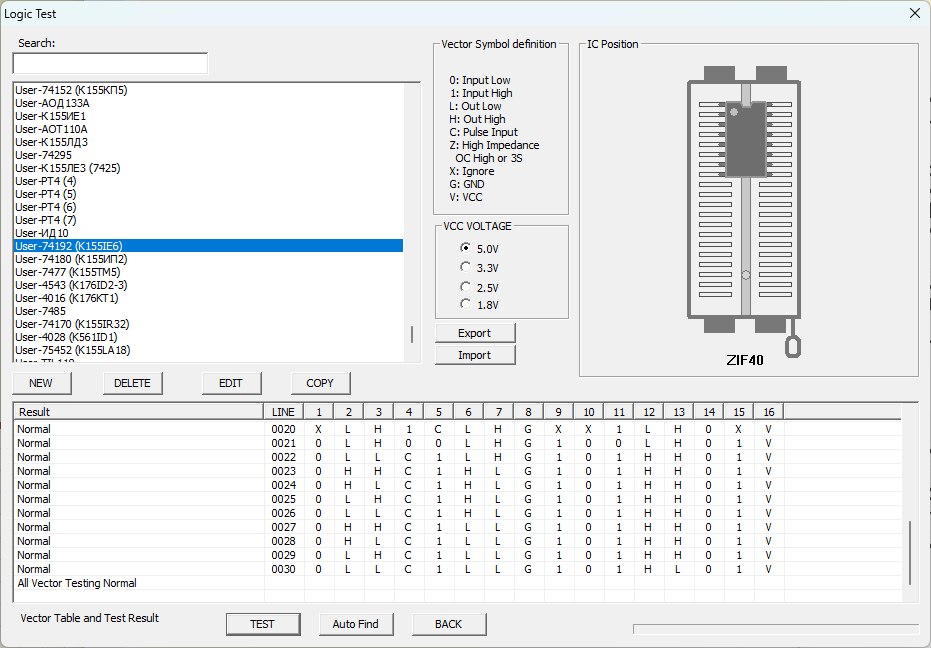

8) 74192 (К155ИЕ6) Full test
74192 (K155IE6) 01.png

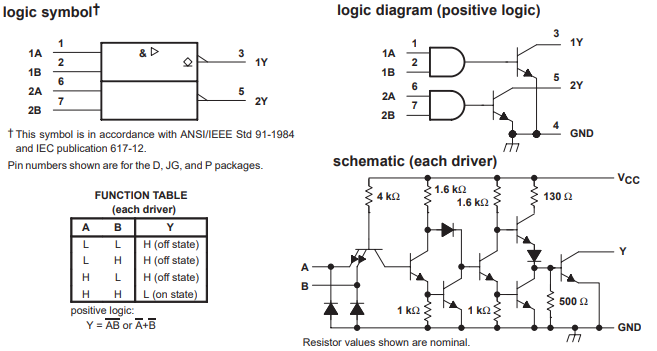

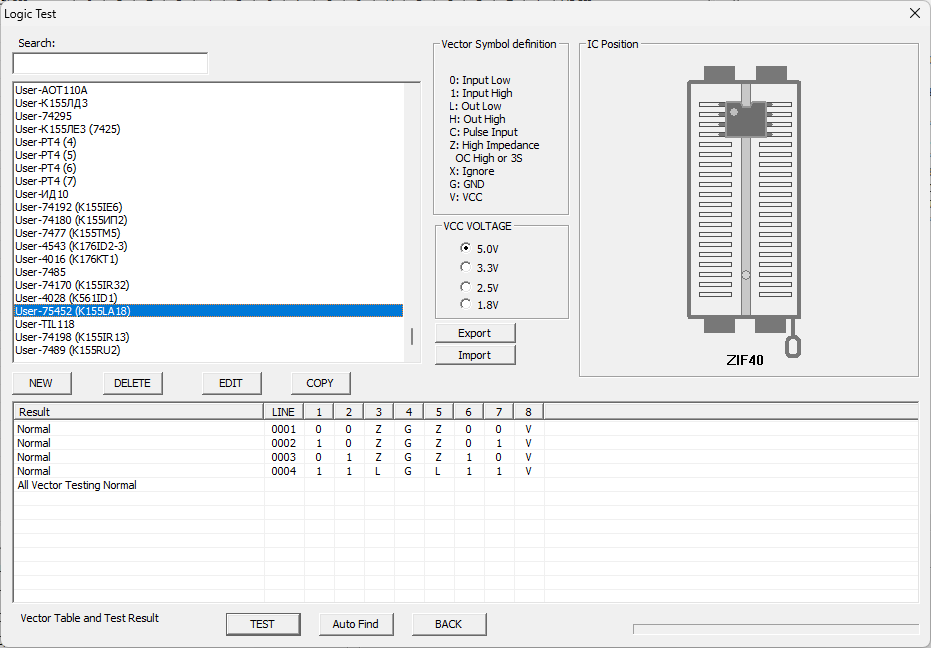

9) 75452 (К155ЛА18)
75452 (K155LA18) 01.png

10) and a few more
